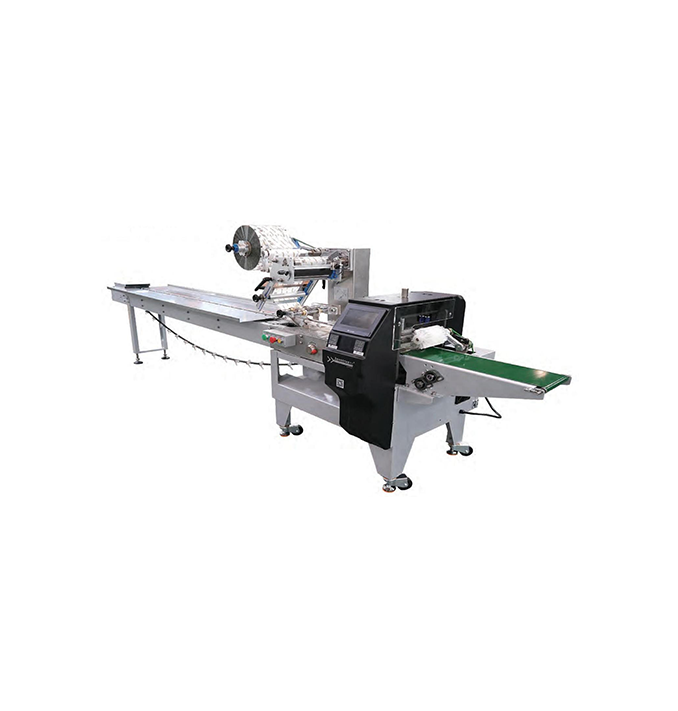

Soonqian Small Flow Wrapping Machine is specially designed for production lines that pursue high efficiency and precision. The packaging speed is as high as 120 packs per minute, which can basically realize zero waste of film materials and 99% of sealing yield. As the source manufacturing factory of deep-cultivated packaging machinery, the Soonqian supports customization on demand and eliminates the difference between middlemen, ensuring that it provides you with highly advantageous factory direct sales and all-round after-sales protection.
Small flow wrapping machine is mainly used in baked goods (biscuits, bread), daily chemicals (soap, paper towels), medical supplies (blister plates, syringes) and hardware accessories (bearings, hinges) independent pillow packaging.
Using independent three-axis servo motor control, the synchronous accuracy of feeding, film feeding and cutting process can reach 0.1mm. Compared with the traditional frequency conversion motor, it can not only reduce the mechanical transmission wear by 30%, but also realize “one-key switching” when changing the packaging length, without manually adjusting the mechanical cam, and shorten the change time to less than 5 minutes.
Equipped with a high-sensitivity photo-eye sensor, it can detect the material position in real time. When it is detected that there is no product in the feeding gap, the machine will automatically stop film feeding and sealing to avoid empty bags. When the product position deviation is detected, the cutter will automatically stop rotating to prevent the material from being cut, which not only saves 15% of the cost of packaging materials, but also effectively protects the cutter assembly and prolongs the service life.
The vertical seal and horizontal seal adopt independent PID temperature control system, and the temperature control accuracy is maintained within ± 1 ℃. This enables the machine to perfectly adapt to various packaging materials of different materials such as composite film, PE film, aluminum foil film, etc., to ensure that the sealing is still flat and air-tight under high-speed operation, effectively prevent air leakage and false sealing, and ensure the shelf life of the product.
In view of the production environment of small and medium-sized workshops, the Soonqian optimized the structural layout of the whole machine, covering an area of only about 3 square meters. Although the body is small, it still retains the fully automatic feeding interface, which can be easily integrated into the existing automated production line, helping enterprises double their production capacity in a limited space.
All parts in contact with the material (such as push rod, bag making device, conveying plate) are made of SUS304 stainless steel, corrosion resistance and easy to clean. The open cantilever structure design makes there is no sanitary dead angle under the machine, which is convenient for daily washing and maintenance, and fully complies with the production hygiene standards of GMP and HACCP in the food and pharmaceutical industry.
Equipped with a 7-inch color touch screen, built-in multi-language operating system, with parameter memory function, can store up to 50 product packaging parameter formulas. The operator only needs to select the corresponding product number on the screen, and the machine can automatically adjust to the corresponding packaging speed, bag length and temperature setting, greatly reducing the dependence on skilled workers.
| Parameter item | Technical Specifications |
| Product Name | Small Flow Wrapping Machine |
| Packaging capabilities | 40 – 120 bags/min |
| Film Width | Max. 350 mm |
| Bag Length | 65 – 280 mm |
| Bag Width | 30 – 160 mm |
| Product Height | Max. 45 mm (Standard) |
| Film roll diameter | Max. 320 mm |
| Packaging Material | OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP |
| Drive Type | 3-Axis Servo Motor / Dual VFD |
| Control System | PLC Controller + Touch Screen |
| Power Supply | 1Ph 220V 50/60Hz |
| Total Power | 2.6 KW |
| Machine Dimensions | 4020 x 720 x 1320 mm |
| Machine weight | 550 kg |
| Noise Level | < 70 dB |
Compared with the same type of equipment, the Soonqian Small Flow Wrapping Machine adopts a more advanced cantilever transmission structure, effectively separating the driving area from the product area, and completely solving the pain point of gear jam or belt fracture caused by debris falling into the transmission mechanism of the traditional model. At the same time, we optimized the pressure transmission system of the end sealing tool seat to make the sealing pressure more uniform, and solved the problem that the sealing is prone to wrinkles or lax sealing during high-speed packaging.

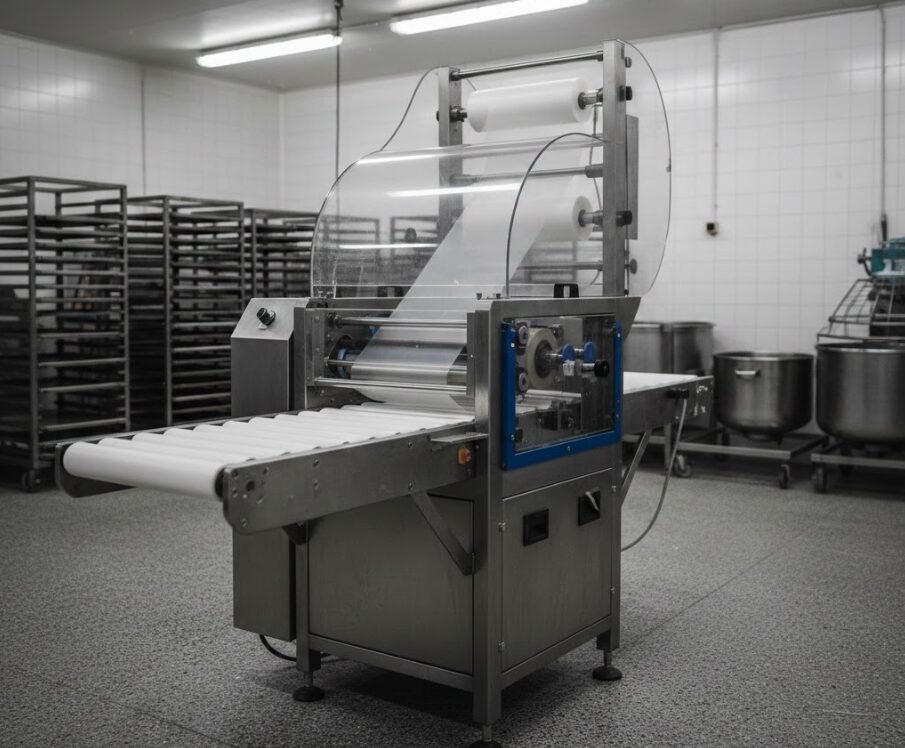

Suitable for food manufacturers who need to pack biscuits, bread, chocolate bars, wafers, etc. The equipment can ensure the hygiene and safety of food in the high-speed packaging process, and extend the shelf life through tight sealing. It is very suitable for medium-sized food plants that have dual requirements for production capacity and hygiene.

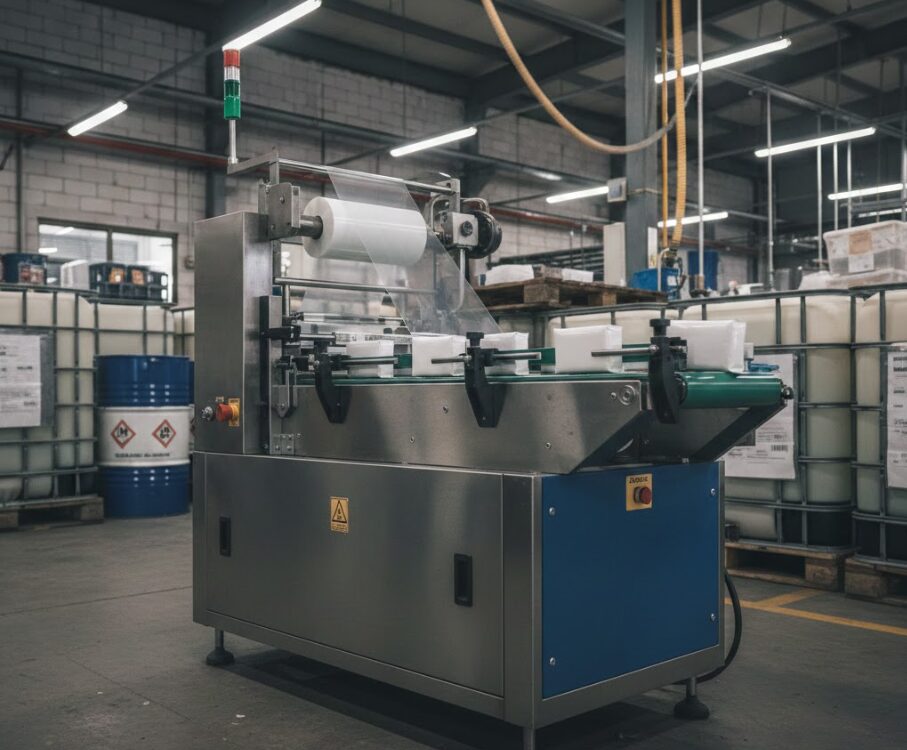

It is suitable for enterprises producing soap, disposable sponge, wet wipes, cleaning blocks and other daily chemical products. The strong sealing technology machine by Small flow wrapping can effectively prevent products from being affected with moisture or volatilization. The compact body design is convenient to integrate before the rear packing line, helping enterprises to realize the transformation from semi-automatic to full-automatic.

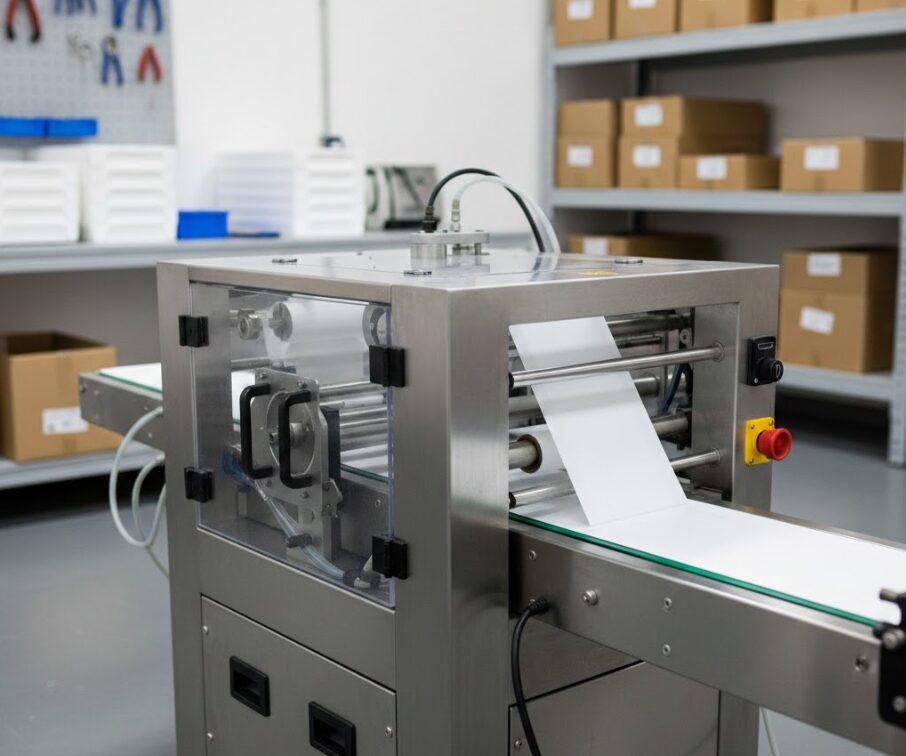

Suitable for disposable syringes, infusion tubes, masks, and secondary packaging of blister drugs. Soonqian equipment, with its GMP-compliant stainless steel and high-precision controls, meets the healthcare industry’s stringent compliance requirements for packaging integrity, traceability and dust-free operation.

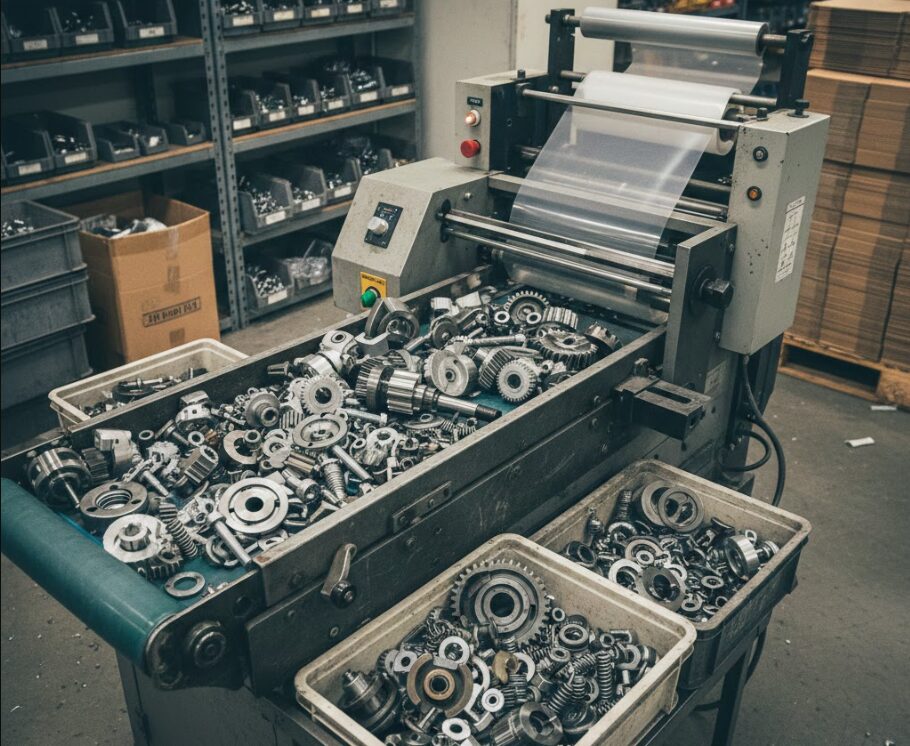

Suitable for rust-proof and dust-proof packaging of industrial standard parts such as bearings, hinges, handles, switch panels, etc. In view of the characteristics of heavy weight and irregular shape of hardware, the equipment’s reinforced conveying mechanism and anti-cutting protection function can effectively prevent machine damage and solve the problem of packaging damage caused by the high hardness of metal parts.
Install the packaging film roll on the central shaft, and pass the film material through the tension roller, the bag making device and the middle sealing wheel in turn according to the schematic diagram of the film passing. Ensure that the film material is flat and wrinkle-free, and adjust the cursor sensor to align the color punctuation point on the film material to ensure the accuracy of the subsequent cutting position.
Turn on the power and select “Parameter Setting” on the main interface of the touch screen “. Enter the product length, the required packing speed, and the sealing temperature (it is recommended to set it at 120°C -160°C depending on the film thickness). If it is a stored product, click “recipe call” directly to automatically load all preset parameters.
According to the width and height of the actual product, manually adjust the handwheel of the bag maker to make the molding channel slightly wider than the product by 2-3mm. Put an actual product into the test run, observe the product in the film tube through the sex, to ensure that neither stuck material nor too loose, to ensure that the packaging is tight and beautiful.
Press the “inching” button for low-speed test run, and observe whether the cutter is cut at the color mark and the seal is firm. If the cutter position is offset, adjust the value of “cut-off position” on the screen; if there is wrinkle or air leakage in the sealing, fine-tune the temperature and the pressure of the middle sealing wheel, and press “Start” to start automatic production after confirmation.
