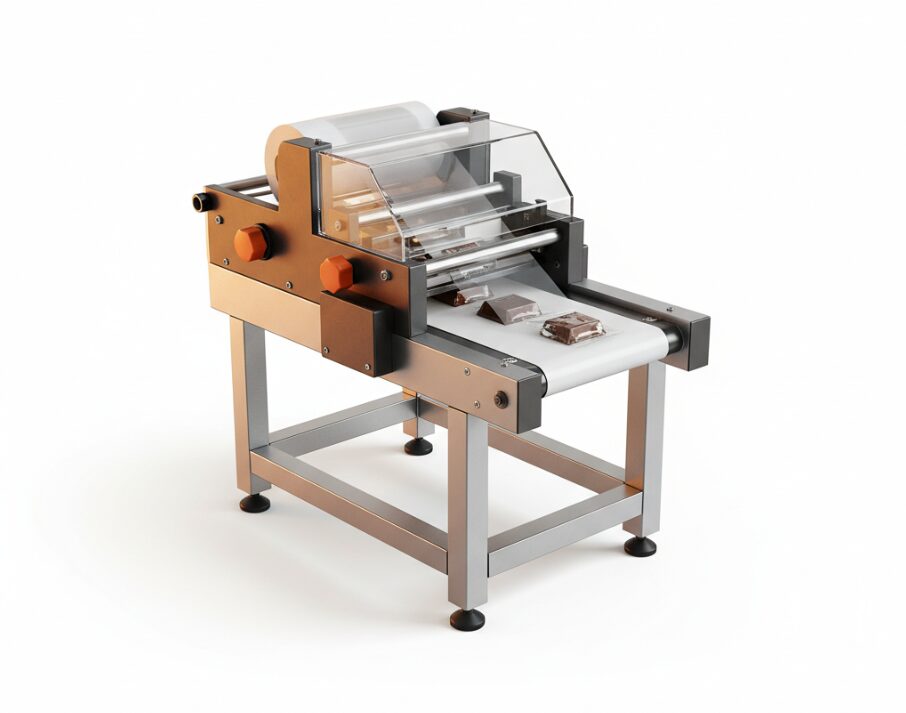

Small Flow Wrap Machine Top Rated & Reliable
This small flow wrap machine adopts double frequency conversion/servo control technology, which can realize precision automatic packaging of small and medium-sized products at a speed of up to 230 bags/minute, significantly reduce the loss of packaging materials, improve the OEE level of the factory, and support batch purchase.
Packing speed: 40-230 bags/min
Maximum film width: 250-320mm
Temperature control accuracy: ± 1°C PID adjustment
Small Flow Wrap Machine Characteristics
Detailed Technical Specifications Table
| Parameters | Technical Specifications |
| Packaging speed | 40 – 230 bags/min |
| Maximum Film Width | 250 mm / 320 mm |
| Bag Length | 65 – 190 mm or 120 – 280 mm (adjustable) |
| Bag Width | 30 – 110 mm |
| Product Height | Max. 45 mm (custom height extension available) |
| Film thickness | 0.03 – 0.07 mm |
| Total power | 220V, 50/60Hz, 2.4 – 2.8 kW |
| Overall weight | Approximately 550 kg |
| Equipment Dimensions | (L) 3770 x (W) 720 x (H) 1450 mm |
Product Comparison Point
Industry-leading flexibility and energy efficiency
Compared with the traditional bulky large packaging machine, this equipment through the “lightweight design + high integration architecture” to achieve a high degree of flexibility of the production line. In view of the increasing demand for “multi-variety, small batch” switching in medium and large factories, it can significantly shorten the downtime of production exchange and optimize the energy consumption ratio per unit output by more than 30%. It is an ideal choice for enterprises to realize agile manufacturing and low-carbon transformation.
Intelligent Operation and Maintenance System of Software and Hardware Collaboration
This product will be the traditional mechanical transmission depth integration of intelligent algorithms, through digital means to break the packaging industry on the senior technicians rely on the bottleneck. The equipment not only matches the international first-line brands in terms of operating accuracy, but also realizes the simplicity of “consumption level” in operating logic, so that enterprises can still maintain extremely high equipment utilization rate and production stability when facing the pressure of personnel flow.
Precision constant pressure film conveying system
In view of the loss problem of loose sealing caused by frequent stretching of packaging film, the system controls the conveying speed and tension in real time to ensure that the film is flat without deformation. This not only improves the beauty of packaging, but also saves thousands of yuan of packaging material scrap costs for enterprises every year.
Zero threshold intelligent interactive self-diagnosis
Facing the current situation of difficult repairs due to the scarcity of skilled workers, the equipment features a built-in real-time fault traceability system. After one hour of training, ordinary workers can accurately eliminate obstacles through screen prompts, completely changing the production stagnation deadlock caused by complex operation and slow obstacle removal of traditional machinery.
Design of Minimalist Transmission Structure
Aiming at the short board with high failure rate and expensive maintenance of complex mechanical transmission, the model reduces the physical connection point by 50%. This structural optimization directly reduces the annual replacement frequency of wearing parts, while significantly reducing the potential loss of output due to downtime maintenance. It also enhances overall system reliability and operational efficiency.
Agile Diversified Production Adaptation
In view of the low efficiency of medium and large enterprises in multi-specification product switching, miniaturized fuselage with flexible parameter storage function,to achieve low-cost high-speed conversion, to solve the traditional heavy equipment space occupation, regulation redundancy and can not take into account the pain point of small batch tasks.
Applicable Crowd
Large-scale Food Manufacturers
Ideal for high-volume packaging of biscuits, chocolates, candies, and bread.

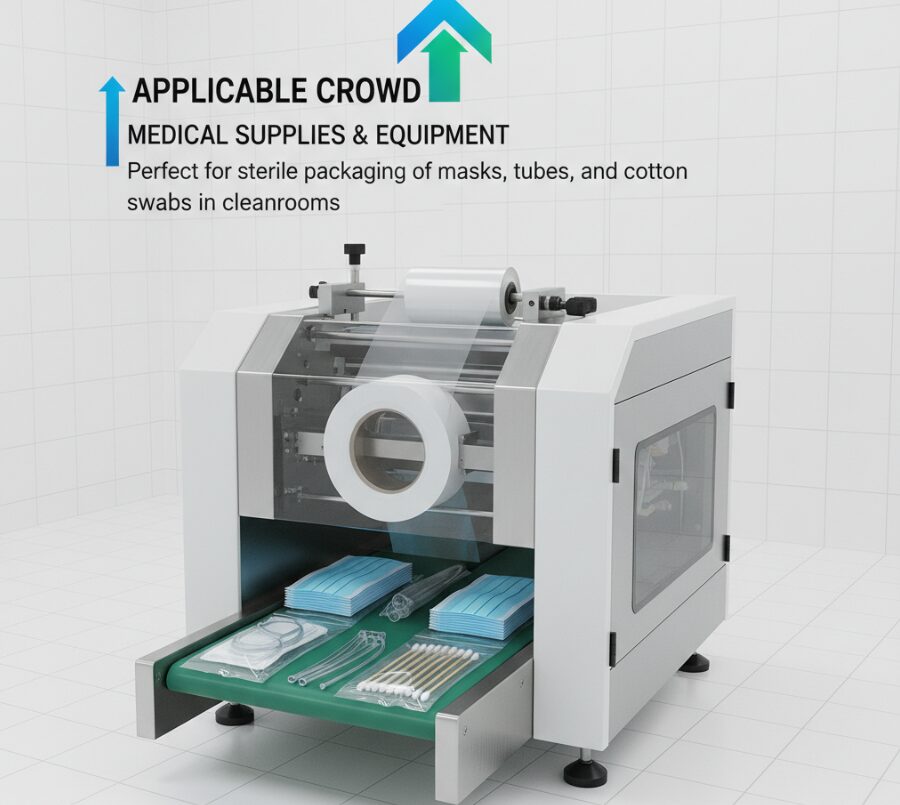

Medical Supplies & Equipment
Perfect for sterile packaging of masks, tubes, and cotton swabs in cleanrooms.

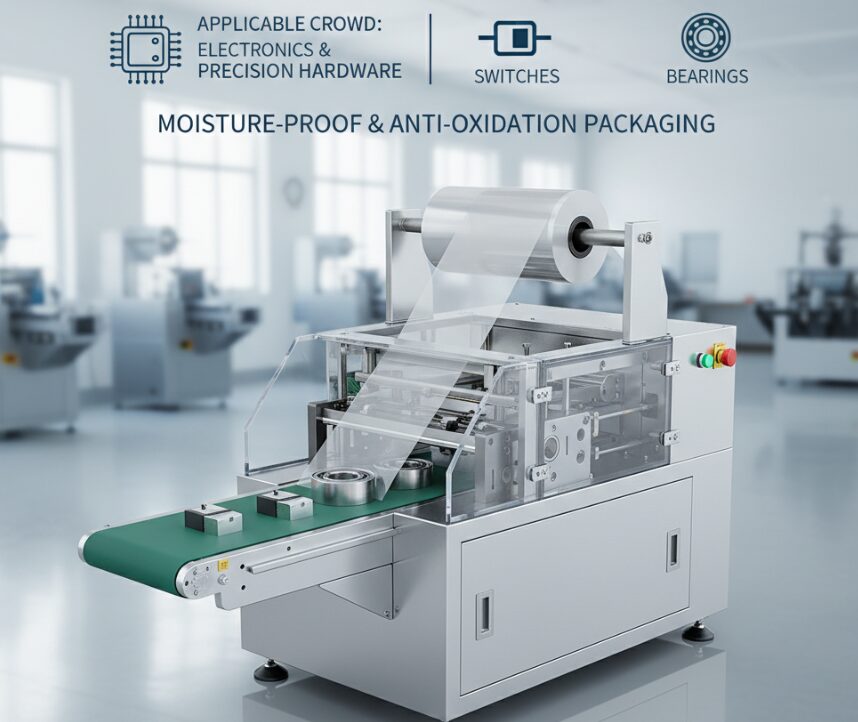

Electronics & Precision Hardware
Ensures moisture-proof and anti-oxidation packaging for switches and bearings.

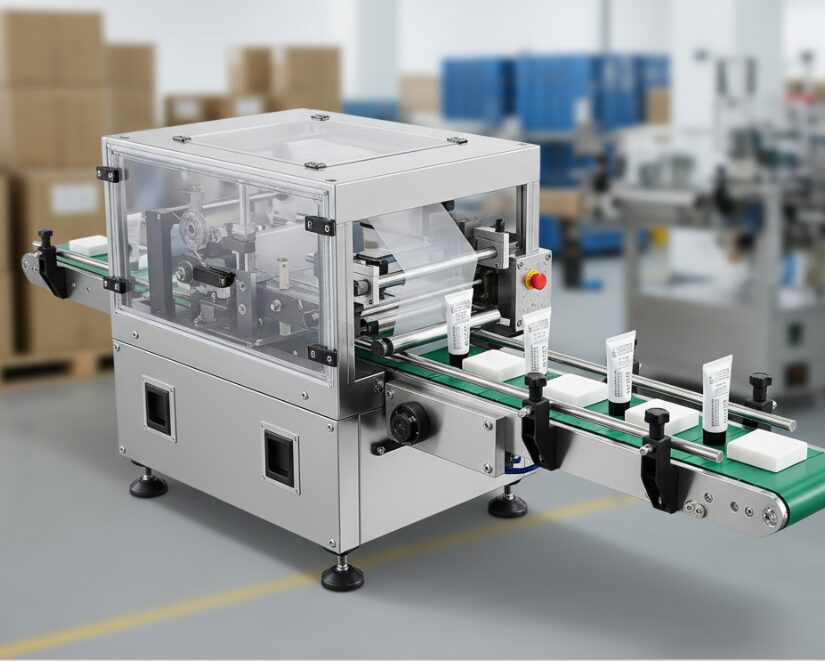

Daily Consumer Goods Companies
Reliable for fast-moving items like hotel soaps and trial-sized skincare products.

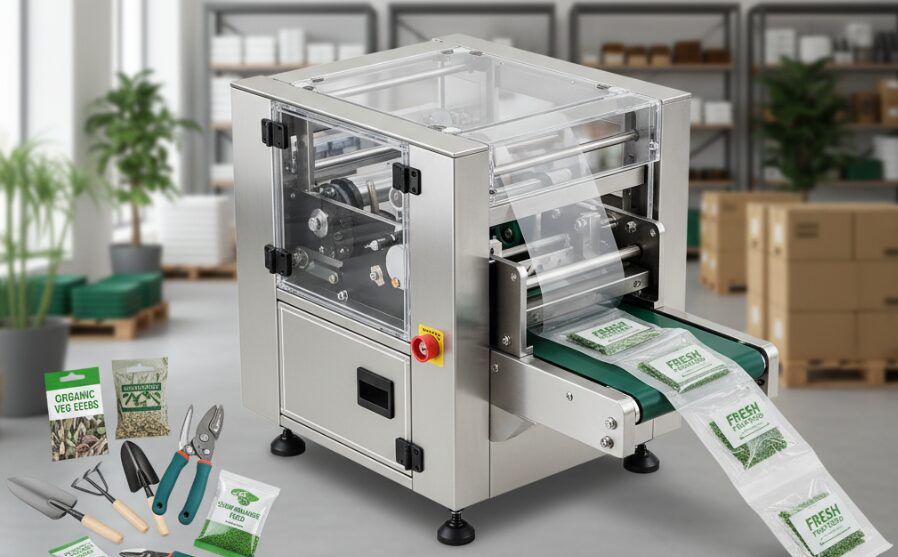

Agriculture & Horticulture Businesses
Efficiently packages seeds, small tools, and fertilizer samples with protection.

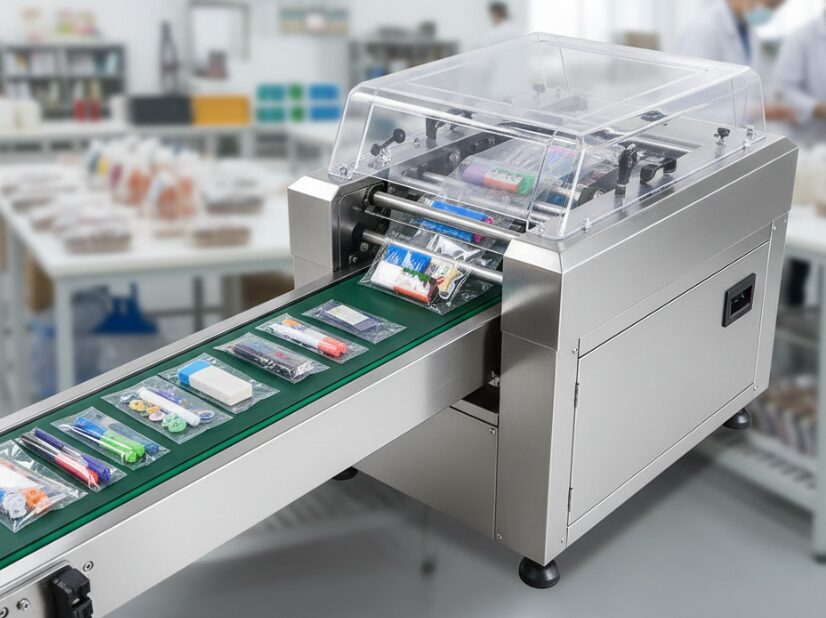

Stationery & Craft Manufacturers
Suitable for individual packing of pens, erasers, and small craft components.
Product Life And After-Sales Service
Expected service life:
Using reinforced mechanical structure, the expected service life of this equipment under standard maintenance is 10-15 years. It is recommended to lubricate the transmission system every 2000 hours of operation, and regularly check the dust removal of electrical components to ensure that the machine is always in the peak performance state.
Pre-sales and after-sales service:
pre-sales to provide professional plant layout recommendations and packaging solutions customized. After-sales service includes worldwide remote video installation guidance, one-year machine warranty and 48-hour fast delivery service of core components to ensure uninterrupted operation of your production line.
Factory Showcase
FAQ
A: Support OPP, PE, PVC, BOPP and various heat sealing composite films (such as PET/PE, aluminum foil composite film, etc.).
A: Very simple. The bag length is digitally set by the PLC screen, and the width of the bag maker can be quickly adjusted by the handle without changing gears.
A: Yes. The standard interface of ribbon printer, ink wheel printer or industrial inkjet printer is reserved for the equipment to support synchronous coding.
A: The equipment adopts independent PID temperature control technology and real-time feedback of temperature sensing elements to ensure that the temperature fluctuation is controlled within ± 1 ℃ at a speed of 230 bags/min.
A: No. The equipment has “anti-cutting function”. If the sensor detects abnormal material position, the cutter will automatically stop and open the protection to avoid damage to the goods and knife.
A: Convenient. The whole machine adopts modular stainless steel body, the work surface is smooth and free of dead corners, and it is easy to wipe. Supporting the provision of detailed video installation tutorial and maintenance manual.
