Soonqian

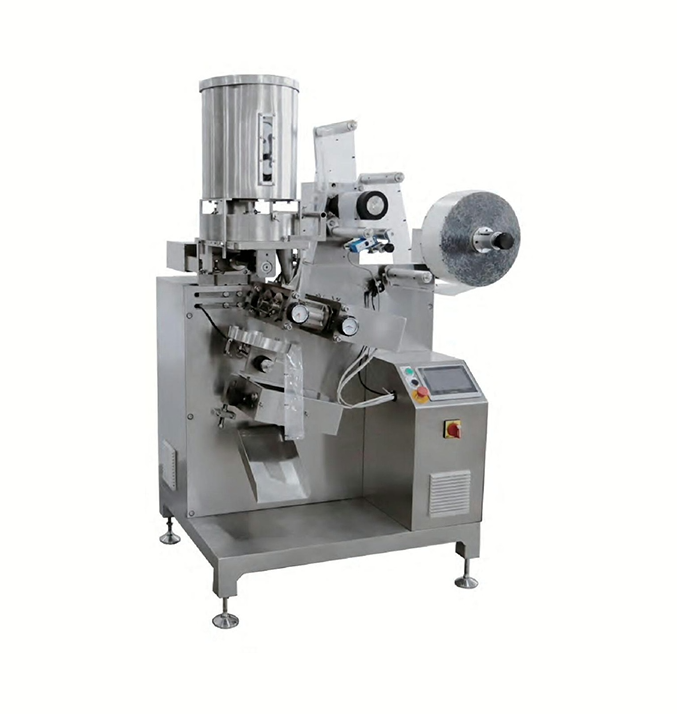

shampoo packaging machine
Soonqian automatic shampoo packaging machine integrates high-precision piston metering and multi-function sealing and cutting system to realize non-destructive packaging and efficient production of liquid materials. As a source factory with many years of manufacturing experience, Soonqian provide you with a direct sales solution that eliminates the difference between middlemen and ensures the stability of your supply chain with highly competitive ex-factory prices and fast flexible delivery capabilities.
Our products
This product is widely used in shampoo filling and sealing, shower gel portable packaging production, conditioner strip package packaging and all kinds of daily emulsion automation packaging field.
shampoo packaging machine features
high precision servo filling system:
The piston pump is driven by a servo motor, and the filling accuracy deviation is controlled within plus or minus 0.5%, which effectively reduces the waste of expensive washing and protecting raw materials and improves the consistency of each batch of products.
intelligent PID constant temperature sealing:
Integrated PID temperature controller, the sealing temperature fluctuation is less than 2 degrees Celsius, ensuring that the packaging bag sealing is smooth and beautiful and does not leak, significantly reducing the defective rate and extending the packaging storage time.
PLC touch intelligent operation:
Equipped with industrial-grade PLC and multi-language touch screen, only need to enter the package length and weight can automatically adjust the operating parameters, shorten the production debugging time by more than 40%.
SUS316L food grade material:
Material contact parts are all made of 316L stainless steel, with excellent corrosion resistance and acid and alkali resistance, in line with cosmetics GMP health standards, to ensure that the product is not secondary metal pollution.
pneumatic anti drip cut off technology:
Equipped with a self-designed mechanical cut-off device to completely solve the problem of liquid wire hanging and material clamping at the sealing, keep the equipment operation area clean and ensure that the sealing strength is not affected by grease.
multi function automatic correction mechanism:
Equipped with high-sensitivity photoelectric color code tracking system, it can automatically compensate the error caused by the stretching of the packaging film in real time, and ensure that the brand LOGO and pattern are always in the center of the packaging.
shampoo packaging machine important parameters
| Parameters | Technical Specifications | Remark |
| Product Name | Automatic liquid/emulsion packaging machine (shampoo packaging machine) | Model series |
| Filling accuracy | ±0.5% – 1.0% | Depending on the viscosity of the material |
| bag length | 50mm – 200mm | Continuously adjustable |
| bag width | 30mm – 150mm | Bag maker needs to be replaced |
| control system | Siemens or equivalent PLC control system | Touchscreen interaction |
| driving force | Gas-electric hybrid drive | Smoother operation |
| Packaging materials | OPP/CPP, PET/PE, composite aluminum foil, etc. | Commonly used heat sealing materials |
| Cleaning and maintenance | Modular quick-release design | Supports CIP in-situ cleaning |
shampoo packaging machine contrast point
The Soonqian shampoo packaging machine adopts a modular design architecture, which supports multi-purpose switching from liquid to paste by replacing the metering components without replacing the main engine. Soonqian, in view of the problem that the sealing of similar products on the market is not firm, the transverse sealing pressure compensation device is specially strengthened, so that the compressive strength of the finished product during transportation is increased by 35%.
Eliminate the hidden danger of liquid leakage:
Dramatically reduce downtime for replacement:
Improve the stability of small size packaging:

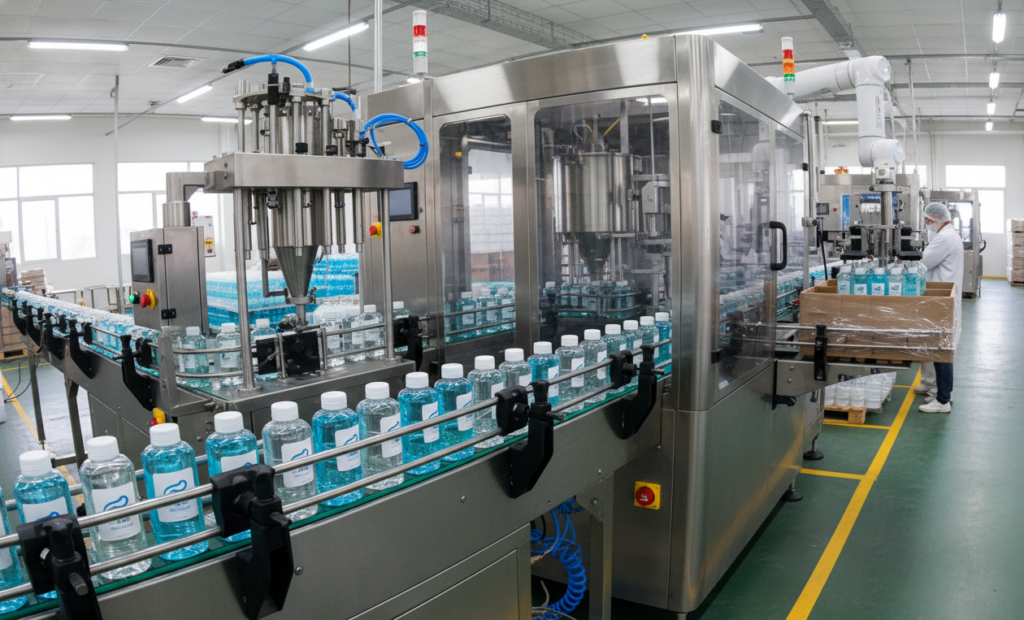

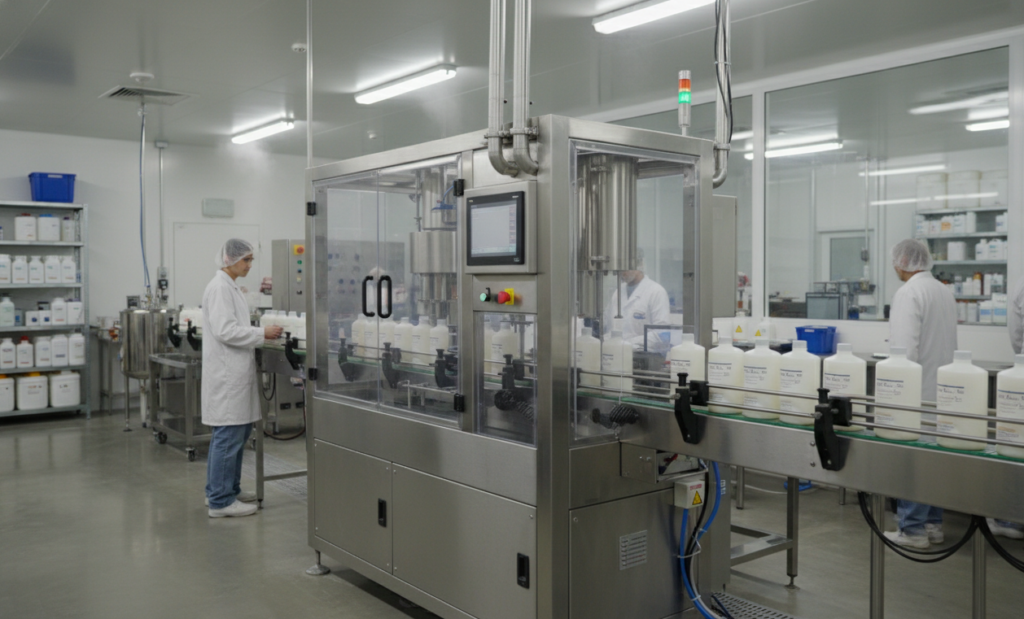

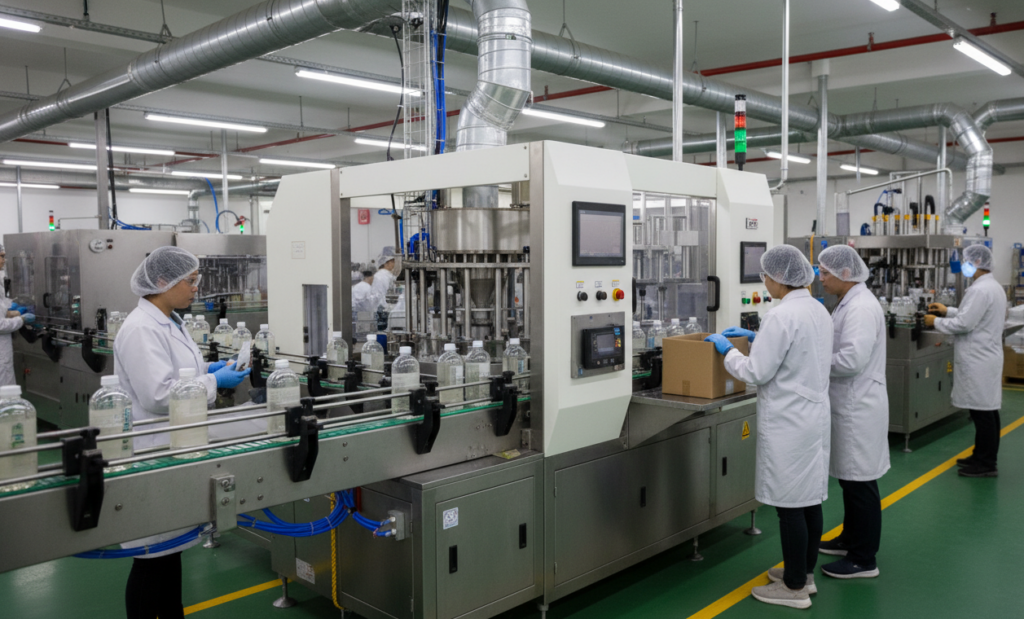

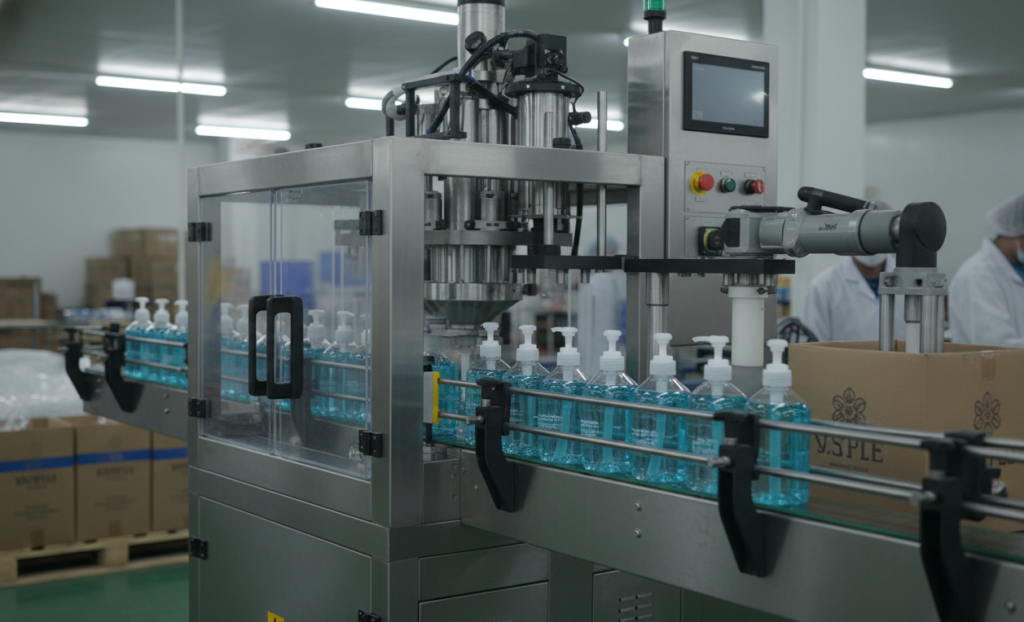

shampoo packaging machine Applicable Crowd
OEM of daily chemical products (OEM/ODM):
It is suitable for processing plants that need to switch brands and specifications frequently, Soonqian the high flexibility of the equipment to meet the needs of multiple customer orders.
star hotel care supplies supplier:
For mass production of travel shampoo and shower gel enterprises, the high speed stability of the model can meet the high frequency of delivery pressure.
small and medium-sized cosmetics brands:
The ex-factory price scheme provided by the Soonqian can significantly reduce the equipment investment threshold for start-ups and provide professional technical guidance to help them start production quickly.
Laboratory R & D and Pilot Base:
It is suitable for pilot scale-up production after cosmetic formulation research and development, and accurate filling control can provide reliable experimental data for product formulation stability.
shampoo packaging machine instructions
boot preheating and detection:
Turn on the heating switch after the power supply air source is connected, and when the sealer reaches the preset temperature, check whether the sensor and safety door are in normal reset state.
Packaging parameter setting:
Input the required bag length, filling quantity and sealing speed on the touch screen. It is recommended to use manual mode for slow inching test for the first operation to confirm the coordination of actions.
Material loading and film penetration:
Install the packaging roll film correctly on the film shaft and pass through the tension bracket, pump the shampoo into the storage hopper, and start the mixing device to discharge the internal air bubbles to ensure accurate measurement.
Start-up production and monitoring:
Switch to automatic operation mode to start production, real-time monitoring of screen output and sealing quality, gram weight sampling every hour to ensure filling accuracy.
View our best selling items
Efficient vertical forming, filling, and sealing.
Ideal for bulk granular or liquid items in small floor spaces.
View our best selling items
Delivers premium packaging quality for doypacks.
Quick changeover and superior seal integrity for flexible bags.
View our best selling items
High-speed multi-lane solution for powder sachets.
Maximizes output with precise dosing and compact stick packs.
View our best selling items
Fast flow wrapping for solid products.
Ensures hygienic sealing and efficient packaging for bakery or hardware.
View our best selling items
Automated robotic arm ensures precise carton erecting.
Reduces manual labor and boosts case forming efficiency.
View our best selling items
Secures packages tightly for safe transport.
High-speed automatic strapping ensures load stability and safety.
Other Packaging Solutions
More functional packaging machines are waiting
for your discovery, and intelligent and beautiful life is in progress.
factory and certificate
certificate
FAQ And Contact Us
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
Please feel free to contact us. We look forward to hearing from you.
TD200L
Manufacturer of vertical bagging machine and bag sealer machine, ideal for sealing and packaging of various bag types.
TD300A
Manufacturer of automatic tea bag packing machine and snack packaging machine for precise food product packaging.
TD200A
Manufacturer of TD200A air bag and pillow packing machine. Reliable packing machine for industrial cushion packaging.
RL140
Manufacturer of RL140 horizontal biscuit packaging machine. Efficient pack machine for biscuits and small food products.
loading…
已经是到最后一篇内容了！
shampoo packaging machine
Soonqian automatic shampoo packaging machine integrates high-precision piston metering and multi-function sealing and cutting system to realize non-destructive packaging and efficient production of liquid materials. As a source factory with many years of manufacturing experience, Soonqian provide you with a direct sales solution that eliminates the difference between middlemen and ensures the stability of your supply chain with highly competitive ex-factory prices and fast flexible delivery capabilities.
30-60 bags/min
Packing speed
5-500 ml
Measurement range
three or four side seal
Sealing form
shampoo packaging machine features
high precision servo filling system:
The piston pump is driven by a servo motor, and the filling accuracy deviation is controlled within plus or minus 0.5%, which effectively reduces the waste of expensive washing and protecting raw materials and improves the consistency of each batch of products.
intelligent PID constant temperature sealing:
Integrated PID temperature controller, the sealing temperature fluctuation is less than 2 degrees Celsius, ensuring that the packaging bag sealing is smooth and beautiful and does not leak, significantly reducing the defective rate and extending the packaging storage time.
PLC touch intelligent operation:
Equipped with industrial-grade PLC and multi-language touch screen, only need to enter the package length and weight can automatically adjust the operating parameters, shorten the production debugging time by more than 40%.
SUS316L food grade material:
Material contact parts are all made of 316L stainless steel, with excellent corrosion resistance and acid and alkali resistance, in line with cosmetics GMP health standards, to ensure that the product is not secondary metal pollution.
pneumatic anti drip cut off technology:
Equipped with a self-designed mechanical cut-off device to completely solve the problem of liquid wire hanging and material clamping at the sealing, keep the equipment operation area clean and ensure that the sealing strength is not affected by grease.
multi function automatic correction mechanism:
Equipped with high-sensitivity photoelectric color code tracking system, it can automatically compensate the error caused by the stretching of the packaging film in real time, and ensure that the brand LOGO and pattern are always in the center of the packaging.
shampoo packaging machine important parameters
| Parameters | Technical Specifications | Remark |
| Product Name | Automatic liquid/emulsion packaging machine (shampoo packaging machine) | Model series |
| Filling accuracy | ±0.5% – 1.0% | Depending on the viscosity of the material |
| bag length | 50mm – 200mm | Continuously adjustable |
| bag width | 30mm – 150mm | Bag maker needs to be replaced |
| control system | Siemens or equivalent PLC control system | Touchscreen interaction |
| driving force | Gas-electric hybrid drive | Smoother operation |
| Packaging materials | OPP/CPP, PET/PE, composite aluminum foil, etc. | Commonly used heat sealing materials |
| Cleaning and maintenance | Modular quick-release design | Supports CIP in-situ cleaning |
shampoo packaging machine contrast point
Eliminate the hidden danger of liquid leakage:
The Soonqian packaging machine adopts double mechanical seal and vacuum suction back technology, which solves the common leakage pain point caused by sealing clamp material in the industry and ensures the cleanliness of the product on the terminal shelf.Dramatically reduce downtime for replacement:
For the multi-specification production of cosmetics, the Soonqian optimized the quick-release structure of the bag making device and the pump body, shortened the traditional one-hour cleaning and recharging process to 15 minutes, and improved the overall production capacity.Improve the stability of small size packaging:
In view of the empty bag phenomenon that is easy to appear in disposable bagged shampoo, the Soonqian introduces the automatic detection induction of material shortage, and the bag is not cut without material, thus solving the problem of material waste and equipment idling loss.shampoo packaging machine Applicable Crowd
OEM of daily chemical products (OEM/ODM):
It is suitable for processing plants that need to switch brands and specifications frequently, Soonqian the high flexibility of the equipment to meet the needs of multiple customer orders.
star hotel care supplies supplier:
For mass production of travel shampoo and shower gel enterprises, the high speed stability of the model can meet the high frequency of delivery pressure.
small and medium-sized cosmetics brands:
The ex-factory price scheme provided by the Soonqian can significantly reduce the equipment investment threshold for start-ups and provide professional technical guidance to help them start production quickly.
Laboratory R & D and Pilot Base:
It is suitable for pilot scale-up production after cosmetic formulation research and development, and accurate filling control can provide reliable experimental data for product formulation stability.
shampoo packaging machine instructions
boot preheating and detection:
Turn on the heating switch after the power supply air source is connected, and when the sealer reaches the preset temperature, check whether the sensor and safety door are in normal reset state.
Packaging parameter setting:
Input the required bag length, filling quantity and sealing speed on the touch screen. It is recommended to use manual mode for slow inching test for the first operation to confirm the coordination of actions.
Material loading and film penetration:
Install the packaging roll film correctly on the film shaft and pass through the tension bracket, pump the shampoo into the storage hopper, and start the mixing device to discharge the internal air bubbles to ensure accurate measurement.
Start-up production and monitoring:
Switch to automatic operation mode to start production, real-time monitoring of screen output and sealing quality, gram weight sampling every hour to ensure filling accuracy.
