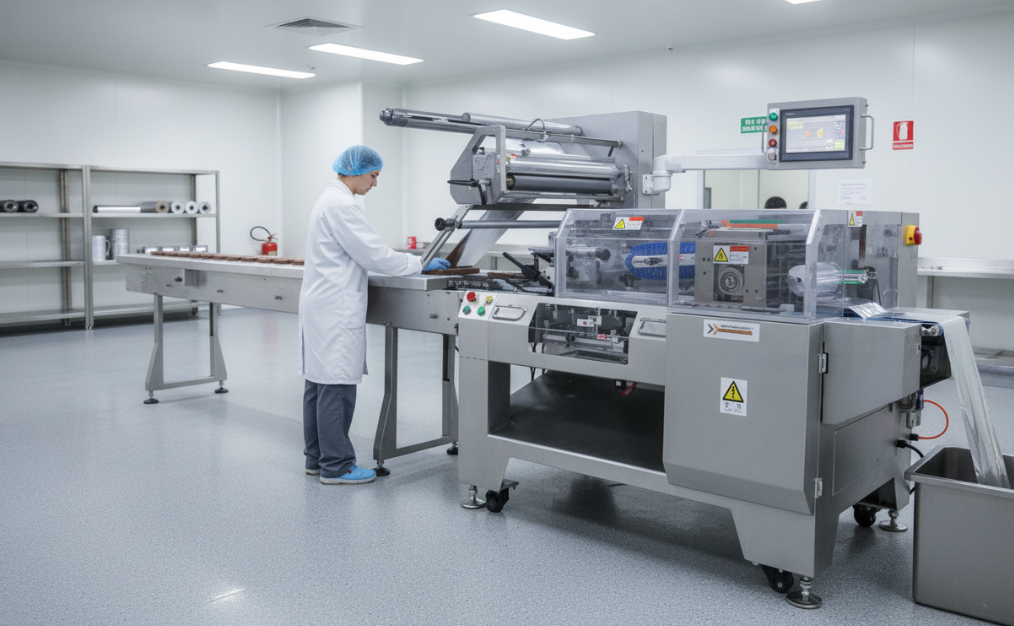

Pillow Vacuum Packing Machine

Pillow vacuum packing machine’s professional name is Horizontal Vacuum Packing Machine. It is an efficient industrial system specialized in making that kind of “pillow-shaped” packaging for fresh meat, cheese, charcuterie and even medical devices.

If you want ROI (return on investment) to look good, you have to look at machines that integrate a continuous horizontal flow process, a powerful vacuum pump, and a MAP (modified atmosphere packaging) system. If the seal is not made into a thorough airtight seal, the shelf life will be shortened in the later stage or the air will leak and be reworked, the loss will cause you to die of headaches. When choosing this type of equipment, servo motor control, PLC stability and food-grade 304 stainless steel body are the bottom line. Without these configurations, the production line is basically unstable. If you still use that manual vacuum chamber and switch to this automatic device that runs 30 to 60 bags a minute, you can save 20% on the optical film material, not to mention the cliff-like drop in labor costs.

Why Is It Called “Pillow” Packaging

In the field of industrial packaging, the so-called “pillow type” actually refers to the geometric shape of the bag—— upper and lower end seals plus a back seal, which looks like a small pillow.

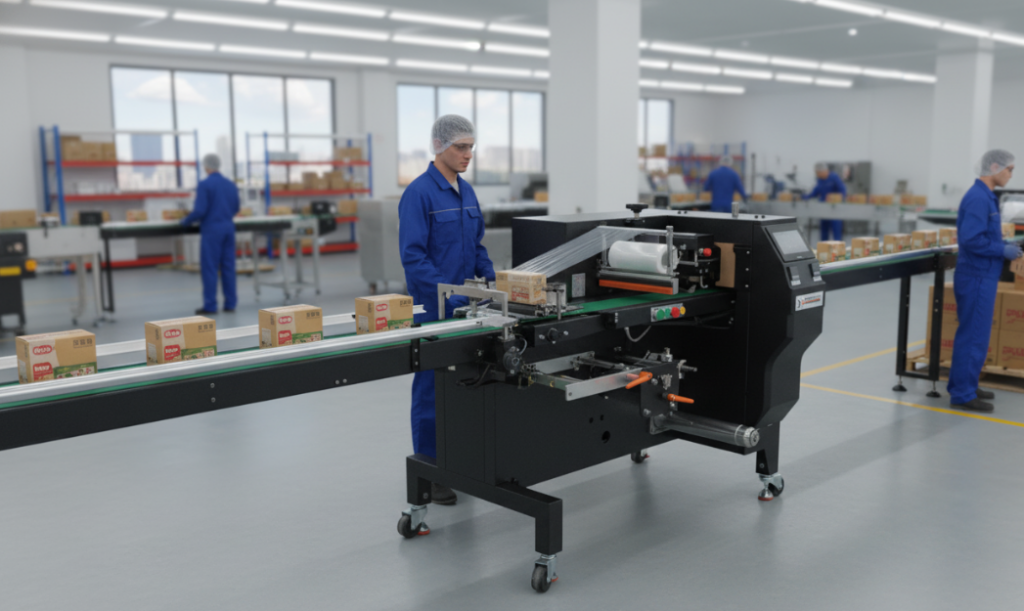

Unlike vertical systems, this horizontal vacuum packaging machine allows the product to be pushed horizontally while lying flat on a conveyor belt. If you are packaging delicate and easily deformed goods such as fresh meat slices or sliced cheese, horizontal feeding is almost the only option because it prevents the product from moving around in the bag and the sales appearance comes out very neatly. The purchasing team must understand that this is “flow packaging” rather than simple “volume compression”, and only then can they find the right equipment based on the actual needs of the production line.

Determining The Shelf Life

The investment income of the production line depends on how long the product can be stored and how low the loss is. A good pillow type vacuum packaging machine, the sealing strength is the core indicator.

Industrial-grade vacuum pumps: Must be able to quickly remove oxygen, which is the key to corrosion protection. I’ve seen some low-end models that don’t have the required vacuum level and the product goes bad after just a few days.

Modified atmosphere packaging: For cooked food or medical consumables, not only must the vacuum be evacuated, but inert gas must also be filled in. This set of functions “vacuum + inflation” not only supports the packaging to protect the products inside, but also solves the common problem of air leakage in low-end equipment, which is crucial to extending the shelf life.

GDS210B-08

Single-layer PE, PE composite film, paper film and other composite films

GET QUOTE

Vertical Packing

Vertical sealing servo, heat sealing servo
cold sealing servo, cutter servo

GET QUOTE

DKXL-650

Precision weighing or multi-head scales ensure consistent bag weight, with quality sensors enhancing packaging accuracy.

GET QUOTE

WP20

Automatically complete the processes of bag making, measuring, filling, sealing, bag cutting, etc., greatly improving the packaging speed.

GET QUOTE

SL400

Versatile granule packaging capability

GET QUOTE

SZ180

It is widely used in food, medicine.

GET QUOTE

Engineering Standards

When looking at the technical parameter table, I recommend focusing on these three hard indicators that must be discussed:

Servo motor control: Under high-speed packaging, the accuracy of cutter and film drawing depends entirely on servo. Without this, the bags are of different lengths and the waste film rate can be so high.

PLC system: This is the equivalent of a machine’s brain. It must be stable under high-intensity operation of 24/7, and the operating interface must be able to store dozens of product parameters. When changing production lines, you can switch by clicking the screen twice.

304 stainless steel material: Used as food and medical equipment, hygiene is the compliance red line. Stainless steel is not only designed to resist corrosion, but also to cope with various demanding cleaning audits.

The Qualitative Change Of ROI

Throughput speed: Manual operation is slow and unstable. The automated HFFS system can stabilize at 30-60 bags per minute, making it easy to triple or quadruple the production capacity.

Cladding loss: This precise sealing and cutting technology can reduce membrane loss by about 20%, which saves all pure profits.

Human release: Freeing workers from repeated feeding seals and allowing them to focus on quality inspection is more beneficial to the long-term development of the factory.
