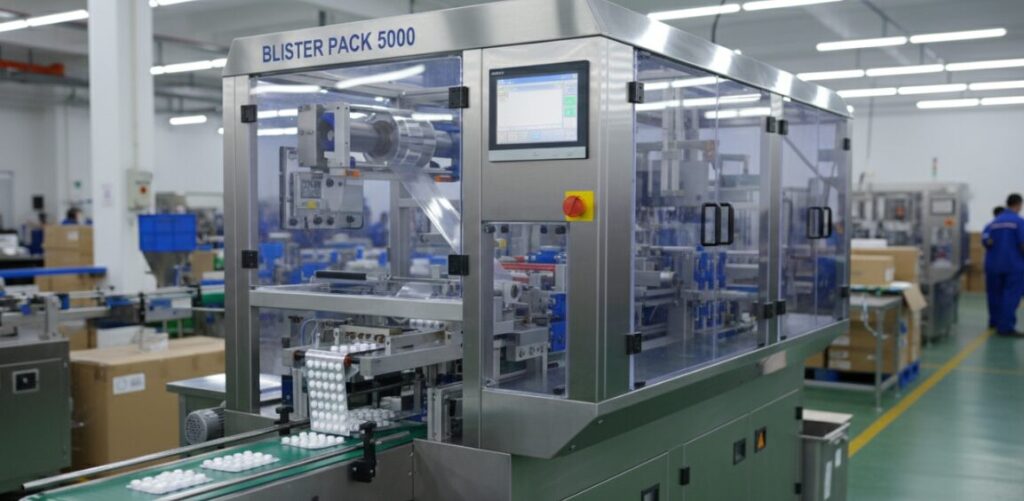

How To Make Blister Packing Machine

To make a functional blister packing machine, you need to integrate four synchronized mechanical stages: Forming, Filling, Sealing, and Cutting. These are key components and step-by-step construction:

• Frame Construction & Drive System: Build a sturdy, vibration-free steel or aluminum frame. Install a drive system using stepper motors and a conveyor mechanism to ensure precise indexing of the plastic web.
• PID-Controlled Heating Station: Mount infrared or contact heaters. You must use a PID controller to maintain a precise temperature window to soften the PVC film without melting it.
• Vacuum Forming Mold: Create a custom aluminum mold with cavities matching your product. Incorporate tiny vacuum holes. When the heated plastic moves over the mold, a vacuum pump pulls the film into the cavities to form the “blisters.”
• Product Filling Station: Integrate a manual or vibratory feeder (depending on scale) to drop products into the formed pockets as they move along the line.
• Heat Sealing Unit: Design a sealing plate that applies constant, uniform pressure. This station bonds the lidding material (aluminum foil or card) to the formed plastic web using heat.
• Punching & Cutting Station: Use a die-cutting mechanism to separate the continuous web into individual, ready-to-use blister packs.
• Control Logic: Use a PLC or an Arduino Mega to synchronize the timing between the heating, forming, and sealing strokes to prevent material deformation or leaks.

Understanding The Core Architecture

When designing from scratch, the toughest challenge is the synergy of temperature, pressure and mechanical action. Whether the machine is running continuously or intermittently, the material must pass through several key stations accurately. Below I disassemble the specific construction steps and core components, which are the dry goods for building a reliable unit.

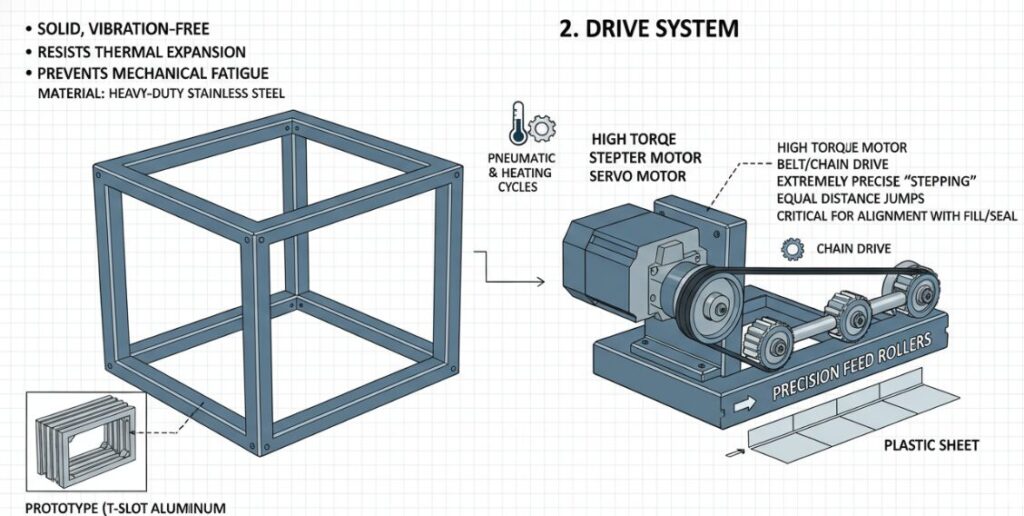

Step 1: Frame Structure And Drive System

The first step is to build a solid, vibration-free steel or aluminum frame. Many people underestimate the importance of the frame, but because the machine involves frequent pneumatic reciprocating motion and heating cycles, if the frame cannot resist thermal expansion or mechanical fatigue, the accuracy will quickly deviate.

• Material selection: When making prototypes, T-slot aluminum (T-slot) is used to assemble quickly; but if it is for industrial durability, I recommend heavy-duty stainless steel directly.
• Drive mechanism: install high torque stepper motor or servo motor. These motors are coupled by a chain or belt drive mechanism to ensure extremely precise “stepping.” This stepping accuracy is the life of the whole machine – the distance of each jump of the plastic sheet must be exactly the same, otherwise the formed blister cannot be aligned with the filling and sealing station behind.

Step 2: PID Control Heating Station

To form the “blister”, the PVC or PET film must be heated to its glass transition temperature.

• Heating element: It is recommended to install ceramic infrared heater or contact heating plate.
• Precision control: PID controller must be integrated here. You have to keep the temperature in a very small window – usually between 120°C and 150°C. If the temperature is low, the film will not be able to be pulled, and it will rupture or form not full. PVC will melt or even release toxic smoke when the temperature is high. The function of PID controller is to ensure the constant output of heat no matter how the workshop environment changes.

Step 3: Vacuum Forming Mold

After the film softens, it immediately passes through the forming mold. This part determines the final shape of your packaging.

• Mold design: It is best to use CNC machining to customize the aluminum mold, and the cavity size should be tailored according to your product.
• Vacuum integration: Tiny vacuum holes are reserved in the mold cavity. When the heated plastic moves to the top of the mold, the vacuum pump instantaneously exhausts air, and the film is pulled down and attached to the cavity wall, thereby manufacturing a transparent bubble shell with uniform wall thickness.
  `

Step 4: Product Filling Station

After the bubble shell is formed and cooled slightly, it enters the filling area.

• Feeder type: depends on your production scale. For small batches, just design a manual feeding tray. If you want to run at high speed, you have to use an automatic vibrating tray feeder.
• Alignment logic: The filling action must be closely matched with the stepping system to ensure that the product falls accurately in the center of the bubble shell and does not knock against the edge, otherwise there will be big problems in the sealing process at the back.

Step 5: Heat Sealing Unit

This stage is the bonding of a cover material (usually aluminum foil or coated paper card) to the formed plastic sheet.

• Seal plate design: The seal plate must apply a constant and uniform pressure. I usually design a mesh (knurling) on the surface of the sealing plate, which can increase the mechanical adhesion and seal more firmly.
• Bonding process: The bonding layer on the aluminum foil is activated by controlled heat. If this step is not in place, the seal (Hermetic seal) is impossible to talk about, and the product is easily affected with moisture.

Step 6: Stamping And Cutting Station

Now, packages that are connected in strings need to be cut into individual pieces.

• Punching mechanism: installation of heavy die or hob. The tool should be fast enough and the alignment should be accurate enough, otherwise the cut edge will have burrs (flash) or serrated shape, and the sense of grade will disappear at once.
• Waste management: in the professional design, I will add an additional waste winding mechanism to automatically roll up the remaining plastic scraps, which is convenient for recycling and can keep the workshop clean and tidy.

Step 7: Control Logic

After fixing the hardware, the most difficult thing is actually the synchronization logic.

• Hardware selection: Siemens is the S7-1200 for industrial stability. If it is a very low-cost DIY, Arduino Mega can barely run through, but its anti-interference ability is poor.
• Programming logic: The controller must manage every milliseconds between the heating cycle, molding stroke, blanking timing and sealing pressure.
• Safety mechanism: The “emergency stop” protocol must be locked in the logic, and sensors should be added to monitor the material interruption or temperature deviation. Once the temperature drifts, stop the machine immediately, which can save you a lot of material costs.
