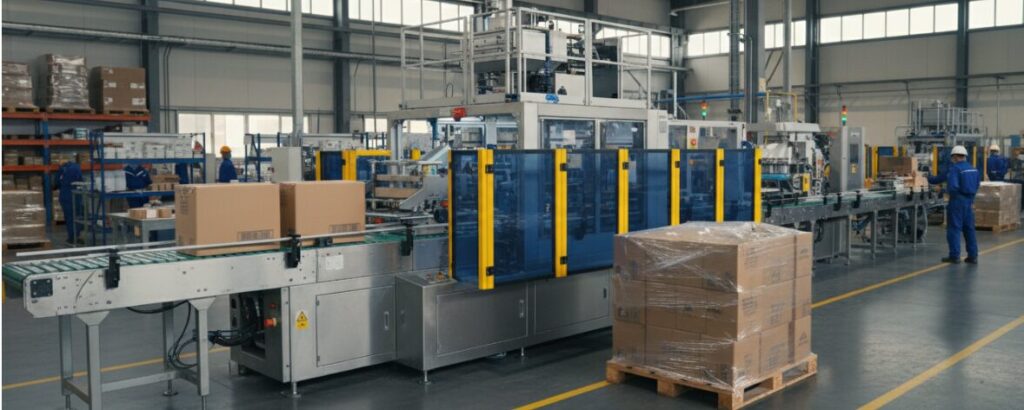

How Packing Machine Works

A packing machine works by automating the process of product packaging through a synchronized sequence of feeding, filling, sealing, and discharging. Controlled by a central PLC (Programmable Logic Controller), the machine coordinates mechanical movements and sensors to ensure precise dosing and secure containment. Whether handling liquids, solids, or powders, the general workflow follows these four critical stages:

Feeding and Positioning: The machine receives raw products or packaging materials (like film rolls, bottles, or pre-made pouches) via conveyors or vibratory feeders. Sensors ensure everything is perfectly aligned.
Forming or Container Preparation: For pouch machines, flat film is shaped into a tube through a forming shoulder. For other types, containers like bottles or boxes are positioned under the filling head.
Dosing and Filling: This is the core stage where the machine accurately measures the product—using augers for powders, pistons for liquids, or multi-head weighers for solids—and dispenses it into the package.
Sealing and Discharge: The package is hermetically sealed using heat, pressure, or ultrasonic waves (often involving a nitrogen flush for freshness). Finally, the finished product is cut and discharged for secondary packaging or distribution.

The Role Of PLC Control System

In actual operation, it will receive the data returned by the sensor in real time, and then give instructions to the servo motor and pneumatic components.

The PLC must ensure that the feeding, filling and sealing actions are perfectly docked within milliseconds of time difference. If the logic design is not good, even if it is only 0.1 seconds slow, there may be a situation where materials are spilled all over the conveyor belt or the seal is not sealed tightly, then the scene is definitely the disaster.

Step1: Feeding And Positioning

The starting point of all processes is to let raw materials enter the production line steadily. If this step is not stable, the automation behind is empty talk.

Raw material transportation: for different materials, we will choose different schemes. Large things generally use belt conveyor, if it is a granular product, with a vibrating plate effect is better, can ensure the continuity of feeding.
Packaging material supply: flexible packaging usually uses roll film, and the machine has to move while pulling the film. If it is a rigid package such as glass bottle or pre-made bag, it needs to be accurately fed into the station.
Sensor alignment: This is the key to error proofing. The high-precision sensor will keep an eye on the position of the container at all times. If the bottle is found to be absent or the roll film is deviated, it will immediately feedback to the PLC to suspend the current action. The sensitivity of the sensor directly determines the rejection rate of your line.

Step2: Forming Or Container Preparation

Before the material is poured in, the packaging must be ready.

In the case of a VFFS, a flat roll of film is pulled through a component called a former, where it is shaped into a tube. In the case of a bottling line, the machine locks the container precisely under the filling head. Don’t underestimate this molding process. If the curvature of the molding device is not designed correctly or the surface is not smooth enough, the film will wrinkle and the sealing at the back will definitely go wrong.

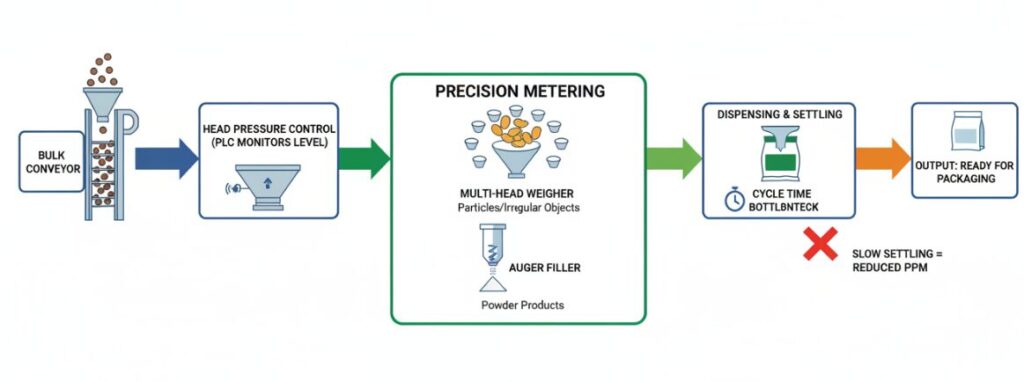

Step3: Dosing And Filling

This is the place where the accuracy of the whole equipment is most tested. Whether the error can be controlled within the range of gram weight depends on this step.

Screw metering machine (Auger Fillers): specializes in powder (like flour, spices). The discharge amount is controlled by controlling the angle of rotation of the spiral rod. However, according to my observation, if the humidity of the material changes, the accuracy of this measurement method will be affected, which should be paid special attention to in production.
Piston filling machine : the first choice for viscous liquid (such as sauce, cream). The principle is similar to that of a syringe, relying on the piston stroke to ensure the volume.
Multi-head Weighers: This is common in snack and frozen food packaging. Multiple buckets are calculated at the same time, and the PLC will select the combination closest to the target weight. Although this scheme is expensive, it really saves material and is very cost-effective in the long run.

Step4: Sealing And Discharge

The final step is to provide protection to the product.

Sealing process: according to the different packaging materials, we will use heat sealing, pressure sealing or ultrasonic welding. This step must be done “airtight level” seal, to prevent leakage caused by deterioration.
Fresh-keeping treatment: many foods need to add a “nitrogen filling” action before sealing to drain the oxygen in the package. This is the key to extend the shelf life, improper operation, the product just off the line to shorten the shelf life.

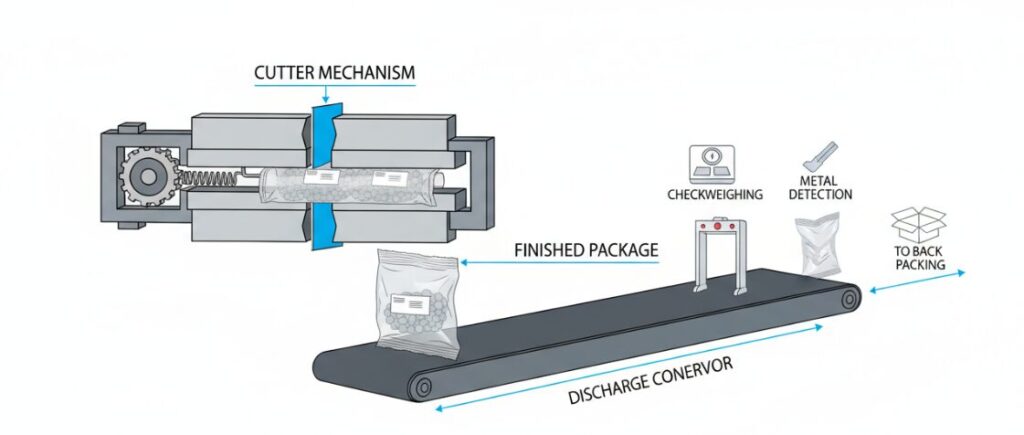

Cutting and discharging: After sealing, the cutter cuts the continuous package, and the finished product is sent to the secondary packaging area (such as packing) or directly shipped by conveyor belt.
