Soonqian

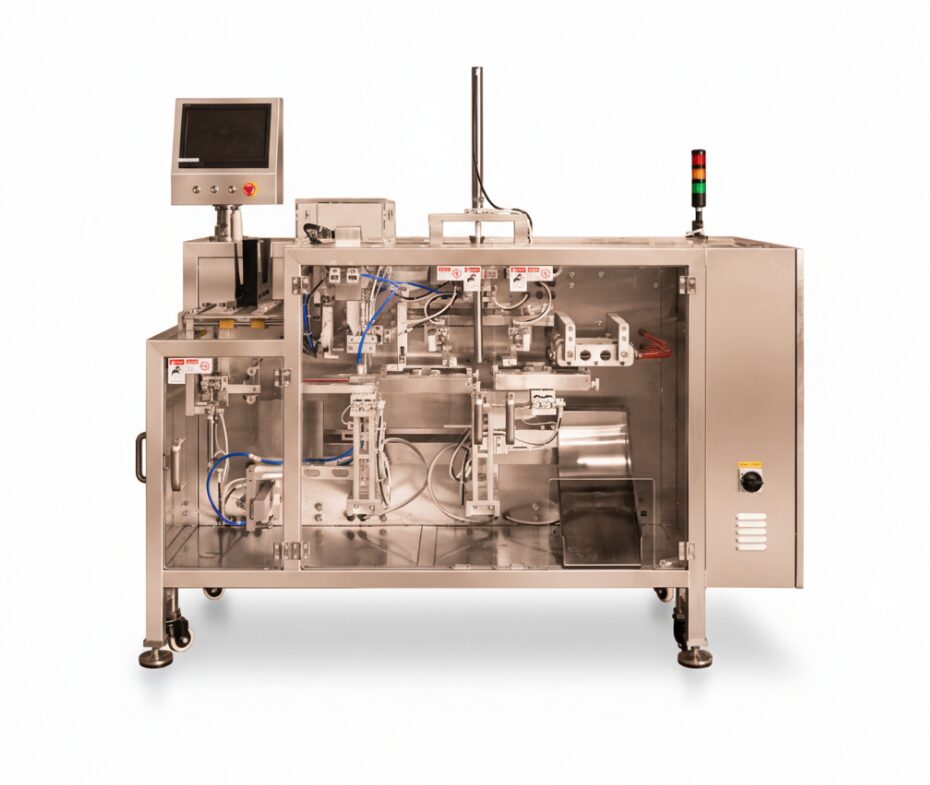

eco friendly packaging machines
This Eco Friendly Packaging Machine is specially designed for processing heat-sensitive biodegradable films such as PLA and PBAT. Through PID high-precision constant temperature control system and 3 servo drive technology, it solves the problems of easy burning and breaking of environmental protection films, realizes high-speed and stable output of 230 packets per minute, and accepts batch orders.
230 packages/min
Packing speed
450mm
Maximum film width
2.6kw
Rated power
Eco friendly packaging machines Features
The seal is flat and firm under high-speed operation
In view of the extremely sensitive characteristics of PLA (polylactic acid) and PBAT films to temperature (the temperature difference exceeds 2 ℃ may lead to seal rupture or knife sticking), this machine adopts an independent double-loop PID temperature control module to strictly control the sealing temperature fluctuation within 1 ℃ to ensure that the sealing is still flat and firm under high-speed operation.
Eliminate excessive film stretching caused by mechanical traction
It is equipped with 3 independent Mitsubishi servo motors to control film feeding, conveying and cutting respectively. Compared with the traditional frequency conversion motor, the system can accurately synchronize the film feed speed, eliminate the excessive stretching of the film caused by mechanical traction, and effectively prevent the brittle biodegradable film from breaking during the packaging process.
Anti-aircraft package function to reduce film waste
Built-in high-sensitivity photo eye detection system, when the product is not detected on the conveyor belt, the machine automatically stops the film feeding and sealing and cutting action. This 1 function can reduce the waste of expensive environmental protection film by about 3% in continuous production every day, and avoid the generation of empty packaging waste products that need to be manually rejected.
Adjustable bag making device adapted to multi-specification products
The universal adjustable bag forming machine is adopted, and the packaging width and height can be quickly adjusted by handwheel without changing the mold. From packaging small-size hardware to large-size daily chemical products, the line change adjustment time is only 10 minutes, which greatly improves the flexible manufacturing capacity of multi-SKU production lines.
Food-grade contact surfaces facilitate daily cleaning and disinfection
All conveyor plates, push rods and side plates in contact with the product are made of food grade 304 stainless steel, in line with GMP and HACCP health standards. The open body structure is designed to facilitate daily cleaning and disinfection, prevent bacterial growth, and is especially suitable for clean packaging needs of food and medical supplies.
Product replacement without complex mechanical commissioning
The 7-inch color touch screen operating system supports the storage of up to 100 sets of product parameter recipes. Users can preset parameters such as membrane length, speed, cut-point position of different products, and only need one-click call when replacing products, without the need to re-perform complex mechanical debugging, thus greatly reducing the dependence on operator skills.
Eco Friendly Packaging Machines Detailed Specifications table
| Parameter Items | Specifications |
| Product Model | EF-450X Servo Flagship Edition |
| Packaging speed | 40 – 230 packets/minute |
| Bag length | 120mm – 450mm (servo settings can be adjusted) |
| Bag width | 50mm–160mm |
| Product Height | Maximum 60 mm |
| Applicable films | PLA, PBAT, OPP/CPP, recyclable single-layer PE |
| Maximum membrane width | 450 mm |
| Film diameter | Maximum 320 mm |
| Power specifications | 220V, 50/60Hz, Single phase |
| Total power | 2.6 kW |
| Machine size | 3770 mm (length) x 720 mm (width) x 1450 mm (height) |
| Machine weight | 450 kg |
| control system | PLC + 3-axis servo drive |

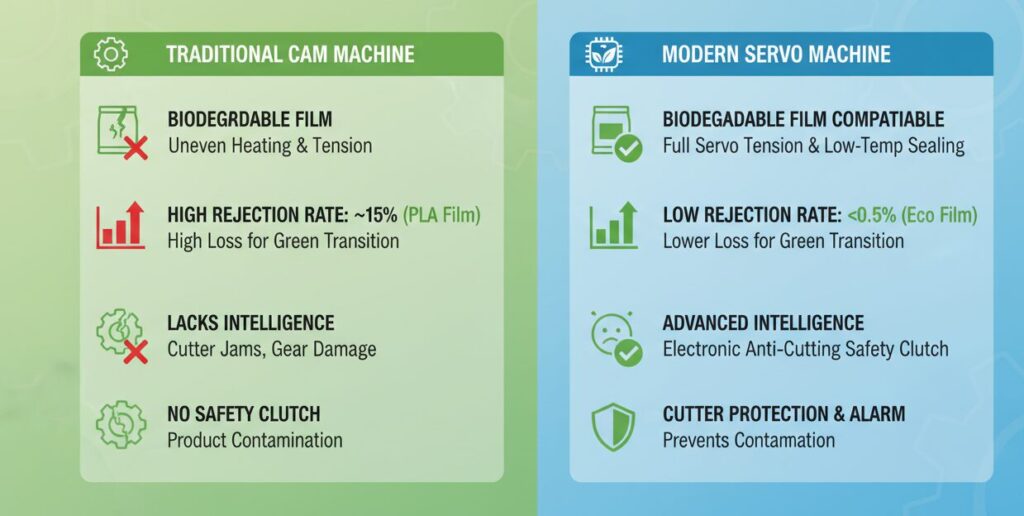

eco friendly packaging machines comparison point
Compared with the traditional old mechanical cam packaging machine, this equipment solves the pain point that biodegradable film cannot be compatible. Old machines due to uneven heating and mechanical tension, in the use of high brittleness, narrow melting point of PLA film, the rejection rate of up to 15%. The machine through the full servo tension control and low temperature sealing technology, the packaging rejection rate of environmental protection film is reduced to less than 0.5, so that enterprises can achieve green transformation with lower loss. In terms of intelligence, the ordinary frequency conversion packaging machine often causes the knife holder to jam or even damage the transmission gear when cutting materials. This equipment is equipped with an electronic anti-cutting safety clutch function. Once abnormal resistance of the cutter is sensed, the cutter will instantly reverse and reset and shut down to give an alarm, which not only protects the expensive cutter seat assembly, but also prevents the cut product from polluting the whole packaging line.
Solve the pain point of insufficient sealing strength of environmental protection materials
Solve the pain point of slow line change in multi-variety and small batch production.
Solve the pain point of poor delivery caused by electrostatic adsorption
Eco friendly packaging machines Applicable Crowd

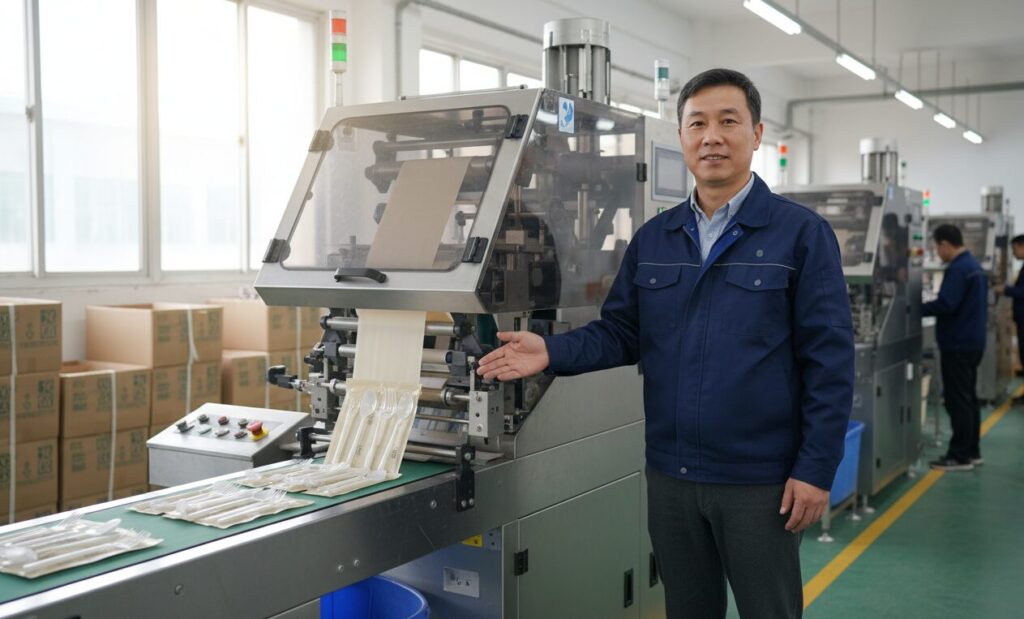

Manufacturer of biodegradable plastic products
Suitable for the production of PLA straws, knives, forks and spoons and other disposable tableware factory. The high-speed flexible packaging capability of the device perfectly matches the production beat of the injection molding machine, and the perfect compatibility with bio-based films ensures the overall environmental protection properties of “fully biodegradable” products.

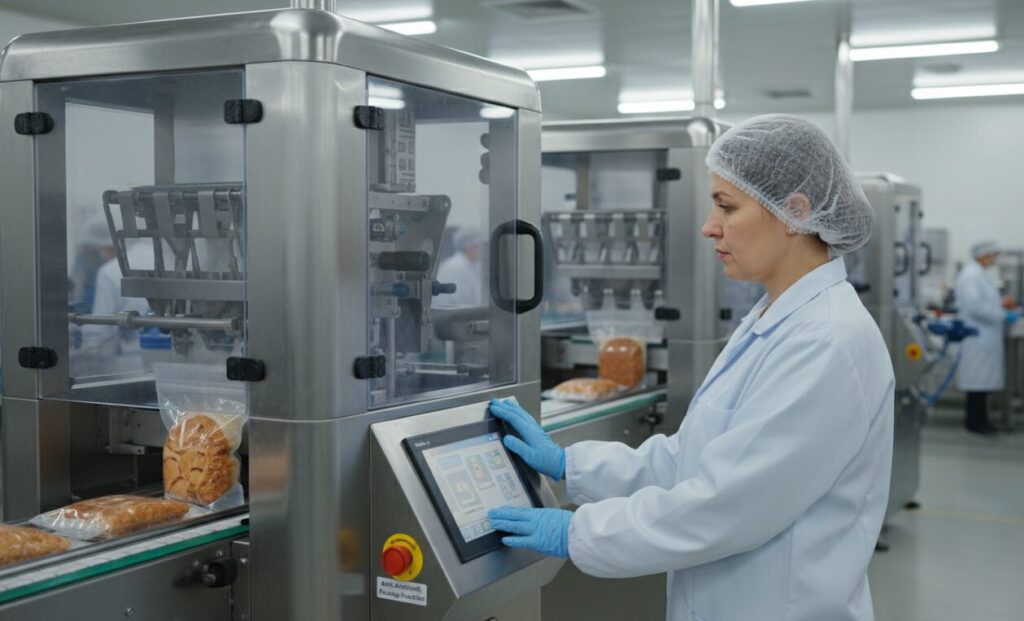

Baking and frozen food processing enterprises
Suitable for food packaging supervisors with high requirements for hygiene standards. The stainless steel body and easy-to-clean design comply with food safety regulations, and the anti-aircraft package function prevents desiccant or deoxidizer from being incorrectly packaged, ensuring the food safety of the final consumer.

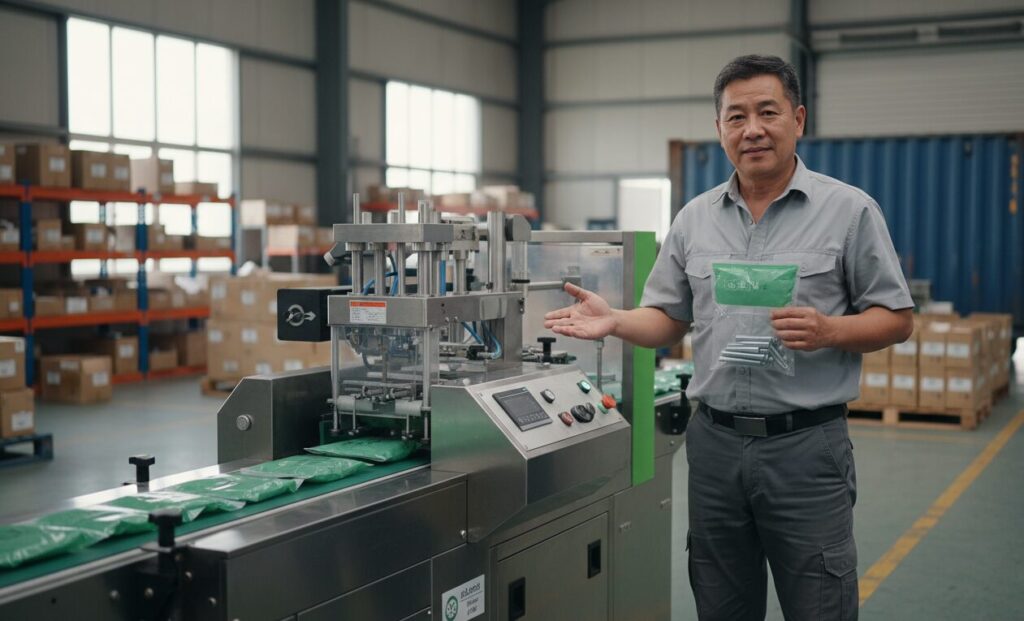

Hardware Accessories & Fasteners Exporter
Suitable for metal parts such as screws and sheets that need to be individually rust-proof packaged. The strong back seal structure can withstand the angular puncture pressure of metal parts. Compared with paper box packaging, film packaging can better isolate moisture and prevent rust during sea transportation.

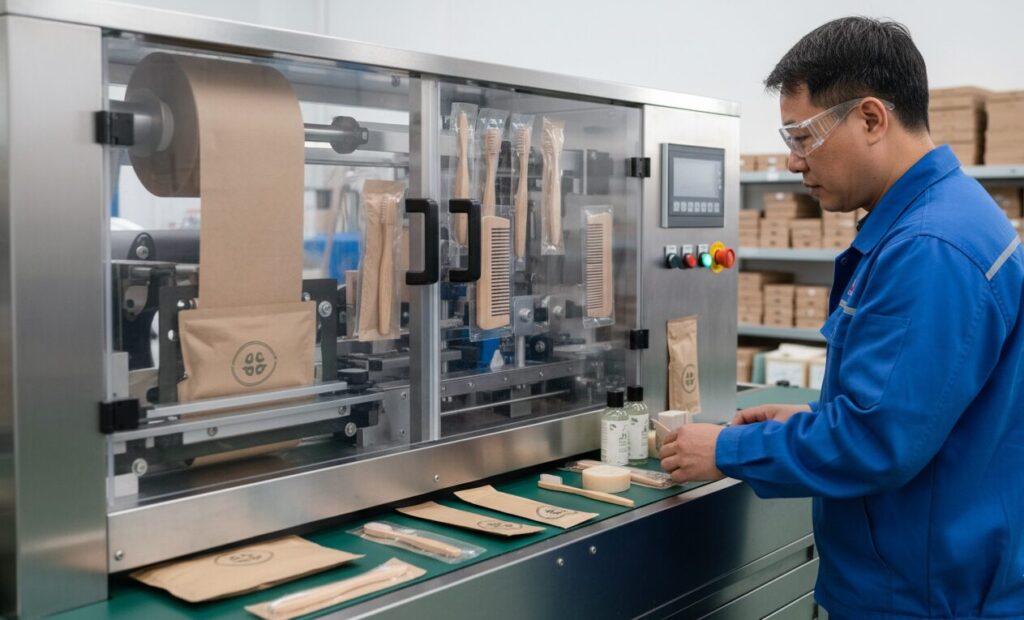

Hotel supplies and daily chemical supplies supplier
Suitable for toothbrush, comb, soap and other hotel consumables packaging. One machine can be compatible with a variety of products of different shapes and sizes by adjusting parameters, greatly reducing the fixed asset investment of enterprises purchasing multiple special equipment for different SKUs.
eco friendly packaging machines instructions
Puncture and Photoelectric Eye Calibration
The roll of biodegradable film was mounted on a cantilever shaft and passed through the film guide roll and former according to the schematic. Align the color code photoelectric eye with the black color block on the film, and click “Photoelectric Calibration” on the touch screen to ensure that the machine can accurately identify the cutting position.
Product recipe calling and fine-tuning
Select the corresponding product formula in the main interface, and the system will automatically load the preset bag length, temperature and speed. According to the room temperature difference in the day, fine-tune the longitudinal and transverse sealing temperatures (usually PLA film is set between 110°C and 130°C).
Empty commissioning and first-piece inspection
Start the machine to run at low speed, and check whether the seal of the empty bag from the former is smooth and the cutting position is accurate. After confirming that it is correct, turn on the “feed” switch, put a product into the test package, and check the packaging tightness and sealing strength.
Automated production and downtime maintenance
After confirming that the first piece is qualified, start the full-speed automatic operation mode. After the end of production, the copper brush must be used to clean the residual melt colloid on the surface of the cross seal knife under the shutdown state, so as to prevent the hardening after cooling from affecting the next day’s production, and turn off the power supply and gas source.
