Soonqian
Carton Strapping Machine Trusted Vendor & Low Price
The Soonqian KZ-101B Carton Strapping Machine is designed with a 450mm low table top, which is specially optimized for binding heavy goods. It can trigger induction only by pushing into the carton, realizing fast and automatic packaging in 2.5 seconds, significantly reducing the handling intensity and improving the packaging efficiency, and supporting bulk purchases.
450mm
Table height:
24 per minute
Strapping speed:
0-60kg (adjustable)
Tightening force:
Carton Strapping Machine characteristics
Weight-friendly low-table design
This machine is specially designed for cartons weighing more than 30kg. The 450mm table height allows the operator to directly push the goods from the pallet into the packing area. Compared with the standard high table model, it not only saves physical strength, but also reduces the daily handling fatigue by 60%.
high precision cam drive system
The internal movement adopts high-strength alloy cam group machined by numerical control to replace the traditional chain drive. With the non-refueling structure design, the operating noise is less than 75 decibels, and the mechanical wear rate is reduced by 40%, ensuring stability in continuous work under high load.
Adaptive hot melt bonding to avoid collapse
Equipped with high-speed heating head and intelligent temperature control module, it only takes 5 seconds to warm up after starting up. The technology can automatically constant the welding temperature according to the thickness of the PP tape, ensure that the bonding strength of the interface reaches more than 90% of the tensile force of the master tape, and avoid the collapse of the tape.
Intelligent photoelectric induction start
The table top integrates a high-sensitivity photoelectric sensor, which automatically executes the strapping action when the carton strapping machine detects that the carton is in place. The response time of the system is less than 0.1 seconds, no need to manually step on the foot switch, and the output of single person and single shift can be increased by 30%.
Anti-cassette automatic tape-back function
For the common pain points of the industry, the control system has built-in logic monitoring. In case of empty hitting or blocked belt feeding, the machine will automatically execute the belt unwinding procedure and remove the residual belt, with the failure self-healing rate reaching 95%, greatly reducing the downtime and maintenance time.
60 seconds automatic shutdown energy saving
In order to comply with the green factory standard, the motor control system is set with intelligent sleep logic. When the equipment is in the standby state for more than 60 seconds without operation, the motor automatically stops running, reducing power consumption by about 30%, and extending the service life of the motor.
Carton Strapping Machine Technical Specifications Table
| Parameter Items | Technical indicators |
| Product Model | KZ-101B (Soonqian) |
| Power specifications | Single-phase 220V/50Hz |
| Power consumption | 0.32 kilowatts |
| Bundling speed | ≤ 2.5 seconds/track |
| Tightening force | 0-60kg (adjustable) |
| Applicable bandwidth | 9mm to 15mm (PP belt) |
| Table height | 450 mm |
| Bow frame dimensions | 800 mm wide x 600 mm high (standard) |
| Machine net weight | 270 kg |
| load-bearing capacity | 100 kg |
Carton Strapping Machine Comparison Point
The Soonqian KZ-101B is superior to similar sheet metal assembly equipment in the market in terms of structural stability. Our frame is integrally formed by welding thickened channel steel, and is designed with a low platform with the center of gravity shifted downward. When the maximum tension is bundled, the vibration amplitude of the machine body is reduced by 50% compared with the products of the same level, thus effectively preventing the loosening of electronic components caused by vibration. Compared with the single mechanical control of the ordinary automatic packer, this carton strapping is machine upgraded to a PC board integrated circuit control system. This 1 improvement makes the control accuracy of the tape feeding length and the ironing time reach the millisecond level, and completely solves the problem of the traditional relay control method that is easy to appear when the voltage fluctuates.
Solve the problem of lumbar muscle strain in heavy cargo handling
Solve the problem of PP belt frequent card machine affecting production capacity
Solve the problem of inconsistent strapping tightness
Carton Strapping Machine Target Audience
Printing and publishing buyers
For the binding needs of high-density heavy cartons such as books and magazines, this group needs extremely high load-bearing capacity and ease of handling. The low-table design of this product is perfectly adapted to the printing factory assembly line, and can effectively handle publications with a single box weight of more than 20kg.
Auto Parts Distribution Center
For the packaging of metal parts such as brake discs and gears. Such products are heavy and require high packaging firmness. The high tension adjustment function of the Soonqian carton strapping machine ensures that the metal parts will not collide with each other due to looseness during transportation.
Ceramic tile and building materials manufacturers
For floor tiles, hardware fasteners and other building materials products of the whole box packaging. There is a lot of dust in this industry. The closed movement design of this machine can effectively block dust from entering the transmission structure and adapt to the harsh working environment of building materials warehouse.

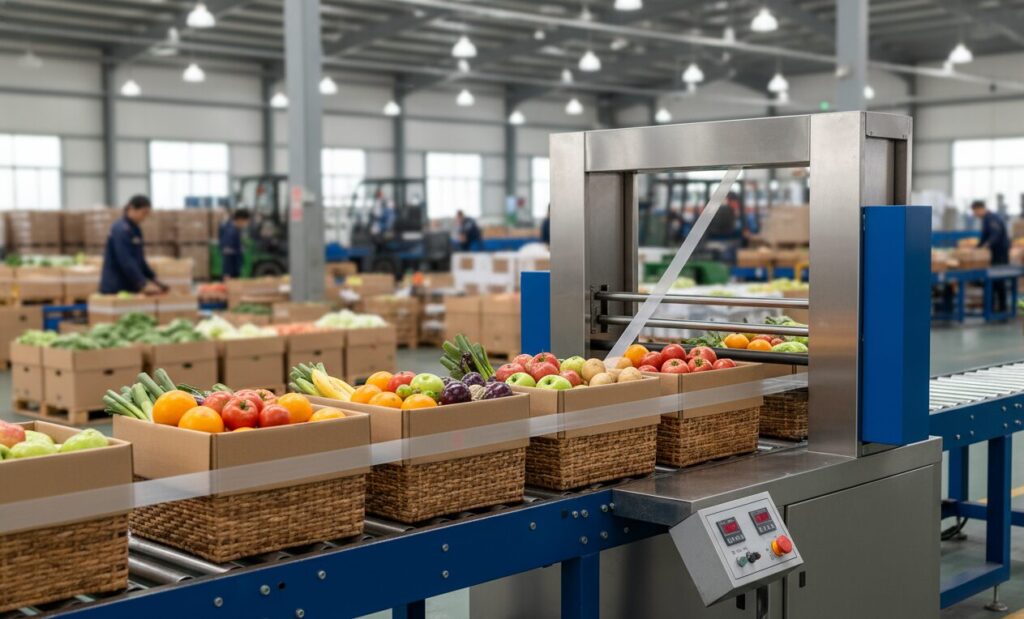

Agricultural products logistics distribution center
Suitable for batch delivery of fruit boxes and vegetable baskets. Because the size of the packing box of agricultural products is changeable and has certain compression limit, the electronic tension control of the machine can ensure that the carton is not crushed while being tightly bound, thus ensuring the integrity of fruits and vegetables.
Carton Strapping Machine instructions for use
Installation and wearing of consumables
Open the door of the right belt reel bin, load the PP packing belt and make sure the belt direction is correct. Insert the tape head through the brake lever and into the inlet of the belt feeding belt, press the belt storage button until the belt is automatically fed into the belt storage box for standby.
Preheating and parameter setting
Turn on the power switch, the device automatically enters the preheating mode. After waiting for about 5 seconds, according to the hardness and weight of the carton, adjust the appropriate binding force and cooling time through the knobs on the panel. It is recommended to set it to mid-range for the first time.
Automatic strapping operation
Push the carton to be packed horizontally to the center of the table to ensure that the photoelectric sensing point is covered. The machine will automatically complete the whole process of tape feeding, tightening, cutting and scalding. For large cargo, can also switch to manual mode key operation.
Daily cleaning and shutdown
After the operation, be sure to clean up the plastic residue around the hot head to prevent carbon deposits from affecting the bonding effect. After turning off the power switch, the machine fan may run for a delay to dissipate heat, and then cut off the main power supply after it is completely stopped.
