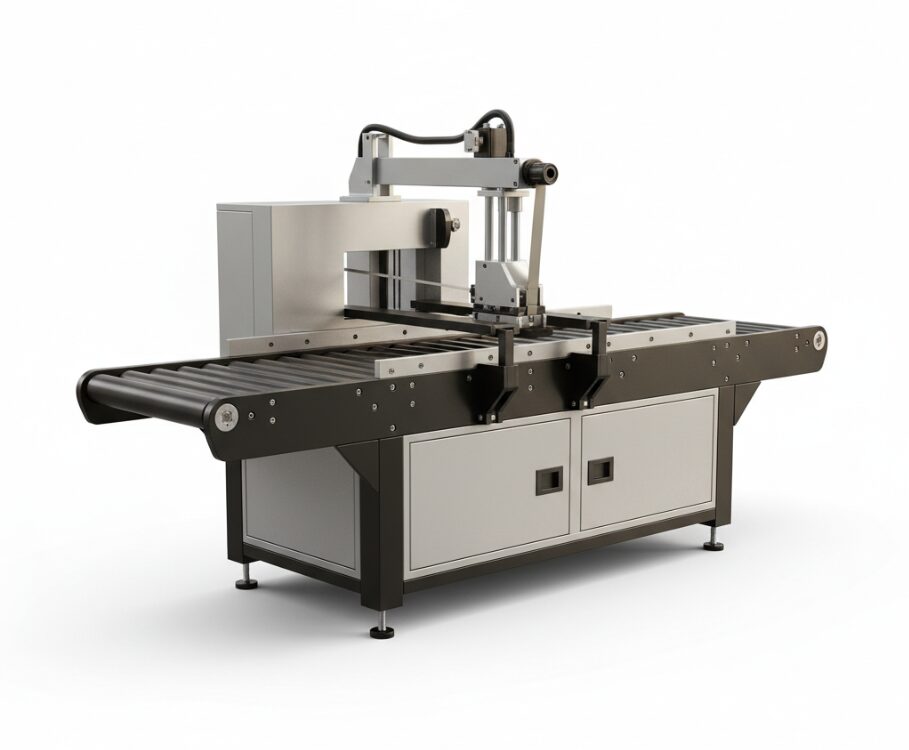

Automatic Top-Seal Strapping Machines Factory Direct Price
This Automatic Top-Seal Strapping Machines is specially designed for high dust and harsh industrial environment. The structure with the movement placed on the top effectively prevents debris accumulation, supports continuous strapping operation of 60 passes per minute, realizes automatic unmanned assembly line integration through PLC intelligent control, and supports bulk purchase.
60 lanes per minute
Packing speed
80kg
Maximum pulling force
850mm
Bow frame size
Automatic Top-Seal Strapping Machines characteristics
Dust-proof top-mounted movement design reduces dust accumulation
The unique top hot melt sealing structure is adopted to effectively avoid the debris and dust generated during the packaging process from falling into the interior of the movement. Compared with the bottom sealing machine, the tape failure rate caused by dust accumulation is reduced by 85%, especially suitable for brick, flour or sawdust environment.
Independent servo motor reduces wear in high-speed operation
Equipped with four independent servo motors, the strapping positioning accuracy is controlled within 0.5mm. This non-chain drive design eliminates mechanical backlash, reduces equipment wear at high speeds by 70%, and significantly extends the life of mechanical components.
Intelligent tightening force to prevent loose goods
Built-in electronic tension adjustment system, supporting stepless adjustment from 5kg to 80kg. For easily deformable cartons or wooden boxes that require high-strength fastening, the equipment can automatically match the preset tension to prevent the goods from being damaged or loose.
High-speed continuous operation capability
The optimized belt track design achieves an industry-leading speed of 60 lanes per minute. With the automatic threading function, when the lack of tape is supplemented, the equipment can automatically reset and restart work within 15 seconds, greatly improving the overall efficiency of the assembly line.
Extensive packaging adaptability
Compatible with PP or PET straps of 5mm to 12mm width without replacing parts. The adaptive bow design allows the handling of packages with a minimum height of 100mm, ensuring that a single device can handle a variety of packaging specifications.
Seamless pipeline integration
Standard communication interface and Siemens PLC control system are standard, which can be interlocked with front and rear conveyors and palletizers. Support photoelectric induction automatic trigger, realize 100 fully automated operation from feeding, strapping to discharging.
Automatic Top-Seal Strapping Machines Detailed specifications table
| Parameter Items | Technical indicators |
| Product Name | Automatic Top-Seal Strapping Machines |
| Applicable packing straps | Polypropylene (PP) tape or polyester (PET) tape |
| Packing tape width | 5mm, 6mm, 9mm, 12mm (adjustable) |
| Bundling speed | Up to 60 passes per minute (depending on frame size) |
| Tightness of binding | 5 kg to 80 kg (electronically stepless adjustable) |
| Minimum packaging size | 100 mm wide × 30 mm high |
| Standard dimensions of bow frame | 850 mm wide × 600 mm high (customizable) |
| Power specifications | Three-phase 380V, 50Hz, 1kW |
| control system | PLC (Programmable Logic Controller) + Touchscreen Human-Machine Interface |
| Machine net weight | Approximately 280 kg |
| Adhesion method | Instant heating and hot-melt bonding, temperature control accuracy ±2 degrees Celsius |
Automatic Top-Seal Strapping Machines Applicable Crowd

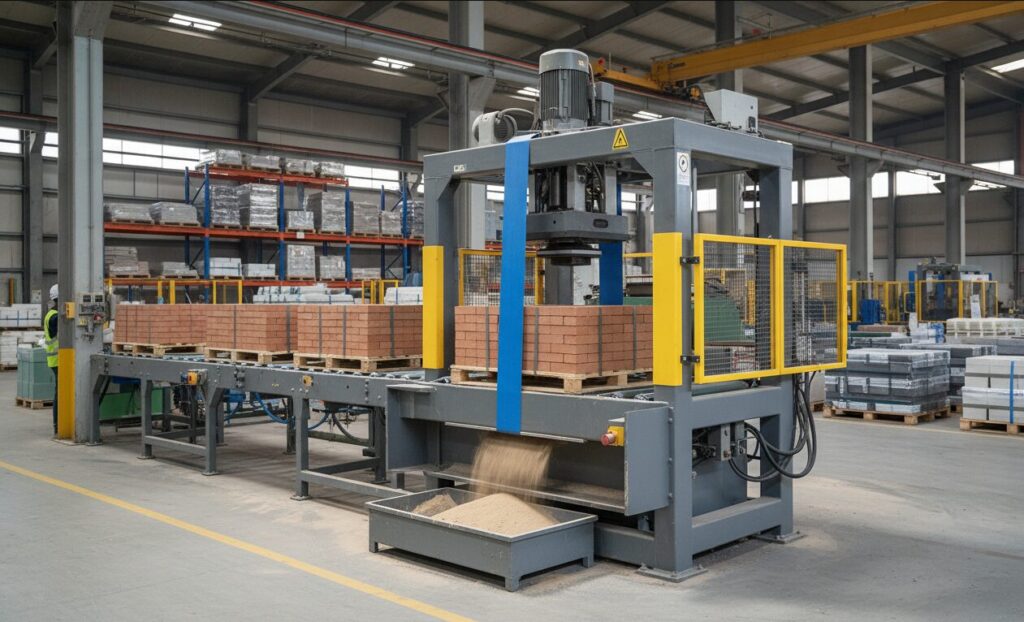

Building Materials and Ceramic Manufacturing Enterprises
Suitable for the binding of bricks, tiles and concrete products. The top movement design can perfectly avoid the sand dust falling from such products, prevent the wear and blockage of the core components of the equipment, and ensure continuous and stable production.

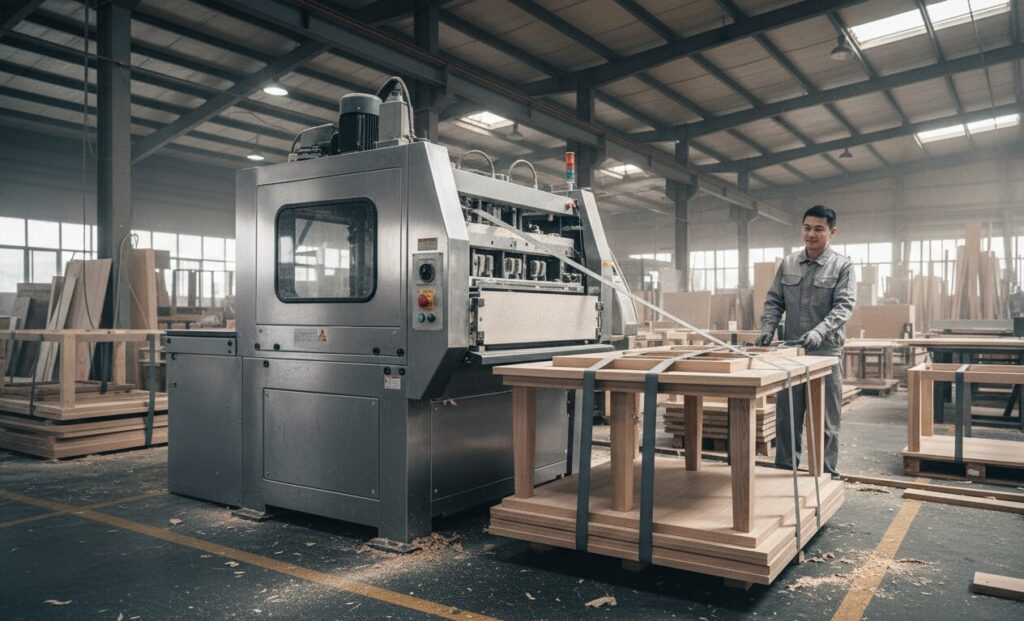

Wood Processing and Furniture Factory
Aiming at the production environment of sawdust flying, the equipment can effectively prevent sawdust from entering the movement. The strong pulling force of 80kg is enough to fasten heavy plates and furniture components and prevent loosening during transportation.

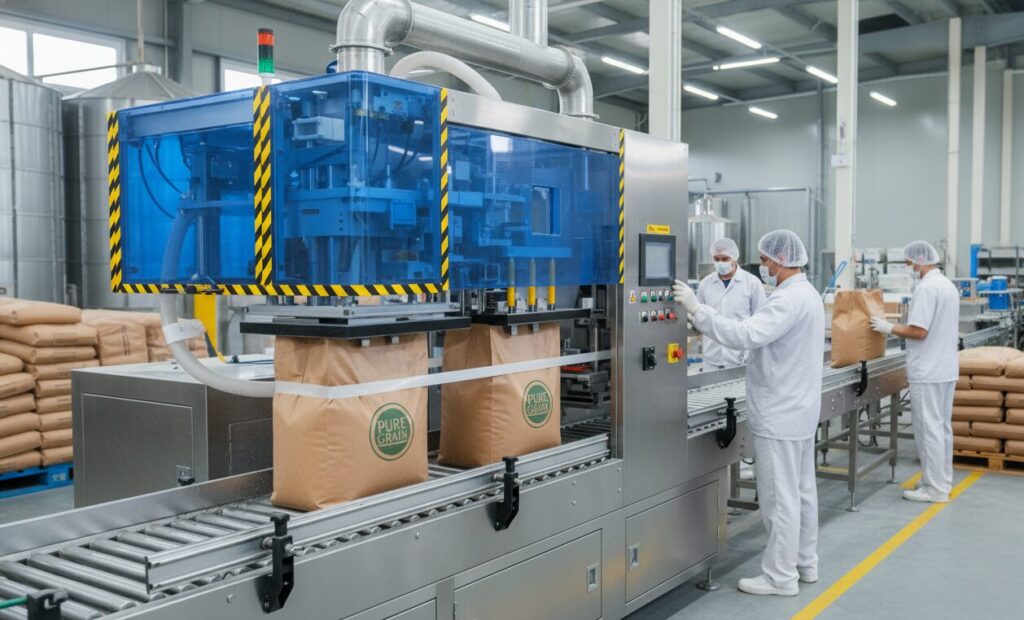

Flour and Grain Processing Industry
In the packaging line of flour, rice and other powdery materials, the ordinary baler is very easy to break down due to dust intrusion. The dust-proof design of the machine meets the hygiene and stability requirements of the food industry, reducing downtime and maintenance time.

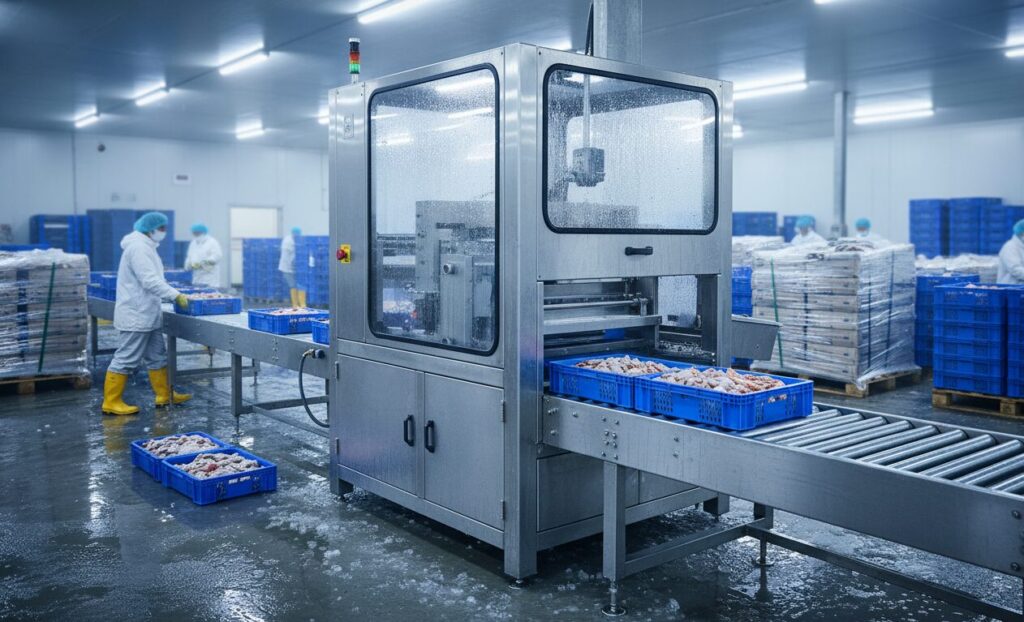

Large frozen seafood processing plant
For wet and icy environments, the top seal prevents water from dripping directly into the movement. With the optional stainless steel body, it can effectively resist salt corrosion and extend the service life of the equipment in harsh environments.
View our best selling items
Efficient vertical forming, filling, and sealing.
Ideal for bulk granular or liquid items in small floor spaces.
View our best selling items
Delivers premium packaging quality for doypacks.
Quick changeover and superior seal integrity for flexible bags.
View our best selling items
High-speed multi-lane solution for powder sachets.
Maximizes output with precise dosing and compact stick packs.
View our best selling items
Fast flow wrapping for solid products.
Ensures hygienic sealing and efficient packaging for bakery or hardware.
View our best selling items
Automated robotic arm ensures precise carton erecting.
Reduces manual labor and boosts case forming efficiency.
View our best selling items
Secures packages tightly for safe transport.
High-speed automatic strapping ensures load stability and safety.
Other Packaging Solutions
More functional packaging machines are waiting
for your discovery, and intelligent and beautiful life is in progress.

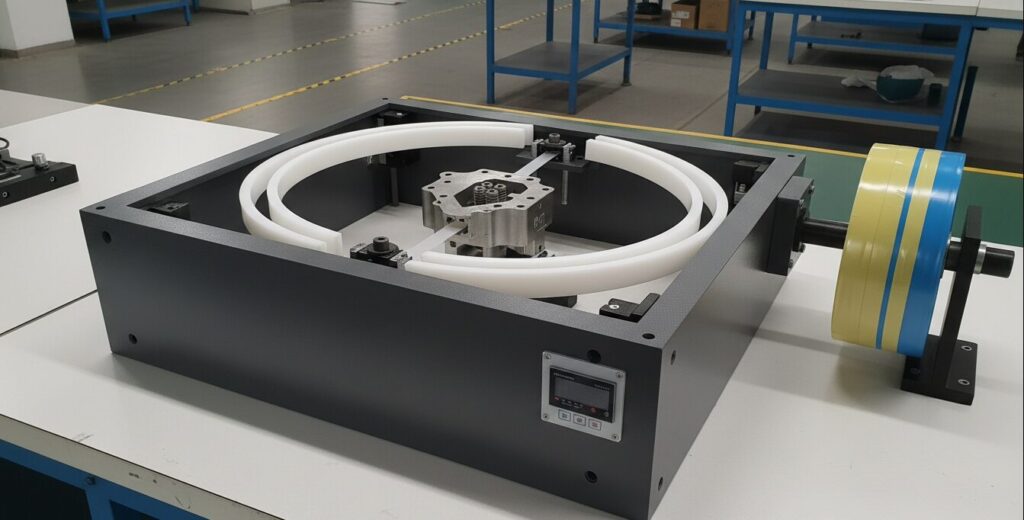

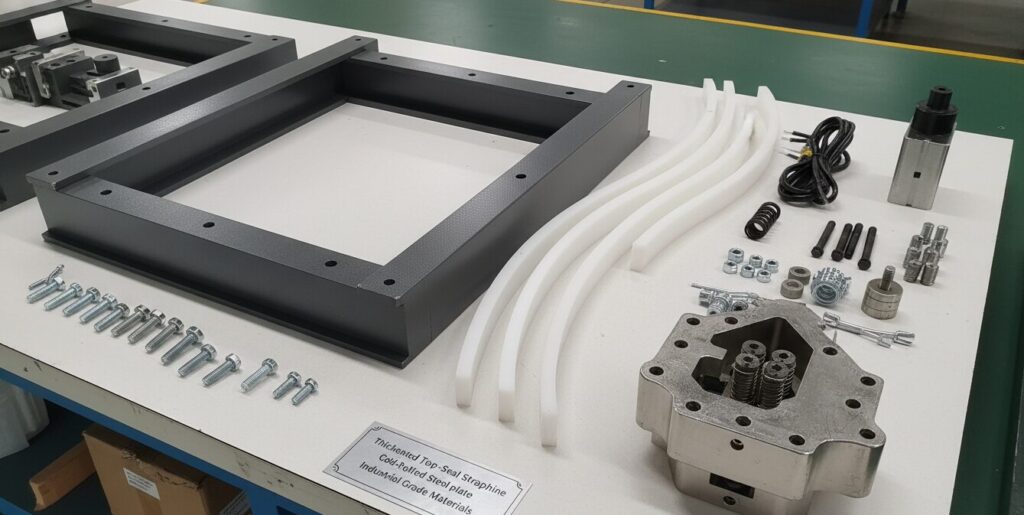

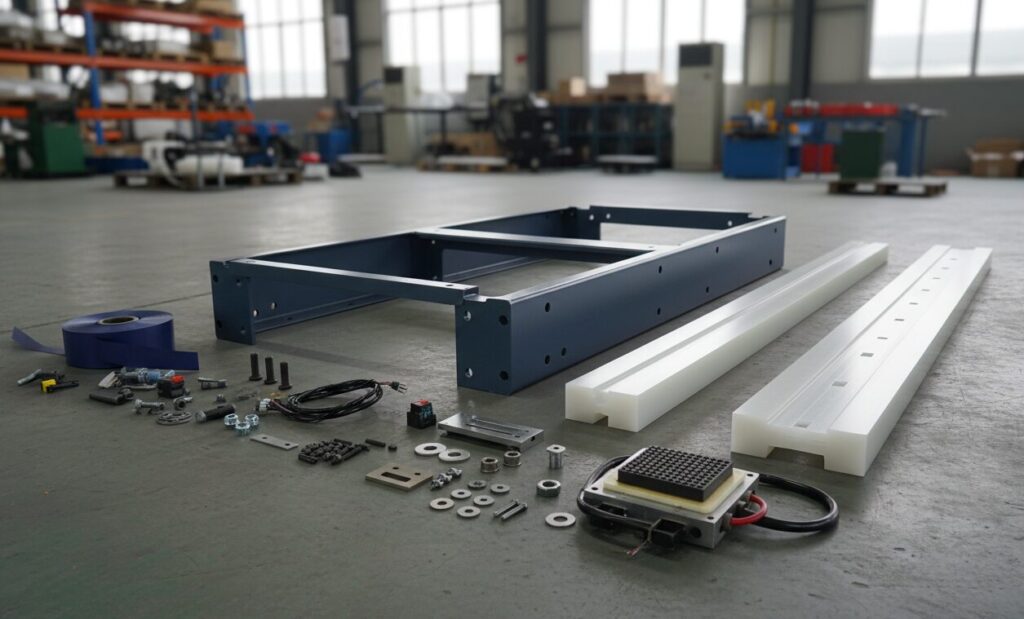

Automatic Top-Seal Strapping Machines Materials
This automatic top-seal strapping machines is made of high strength industrial grade materials. The fuselage frame is made of thickened 3mm cold-rolled steel plate, which is treated by electrostatic spraying and has strong corrosion resistance. The strapping track is made of special high molecular polyethylene material with low friction coefficient and wear resistance. The heating ironing head is made of high nickel-chromium alloy with excellent heat fatigue resistance, ensuring that millions of hot melts do not deform.Automatic Top-Seal Strapping Machines Life and After-sales Service
Pre-sales and after-sales service
Provide detailed pipeline planning consulting and free trial service. After purchasing the machine, it includes on-site installation, debugging and operation training. The whole machine provides a 12-month free warranty, a 24-month warranty for core components, and promises to deliver the spare parts warehouse within 24 hours.
Expected service life and instructions for use
Under standard operating conditions of 16 hours per day, the design life of the core motor and movement assembly exceeds 10 years. It is recommended to carry out a comprehensive dust removal and lubrication maintenance every 500000 strapping cycles, and use it in accordance with the specifications of the operation manual. The equipment failure rate can be controlled below 0.1.
