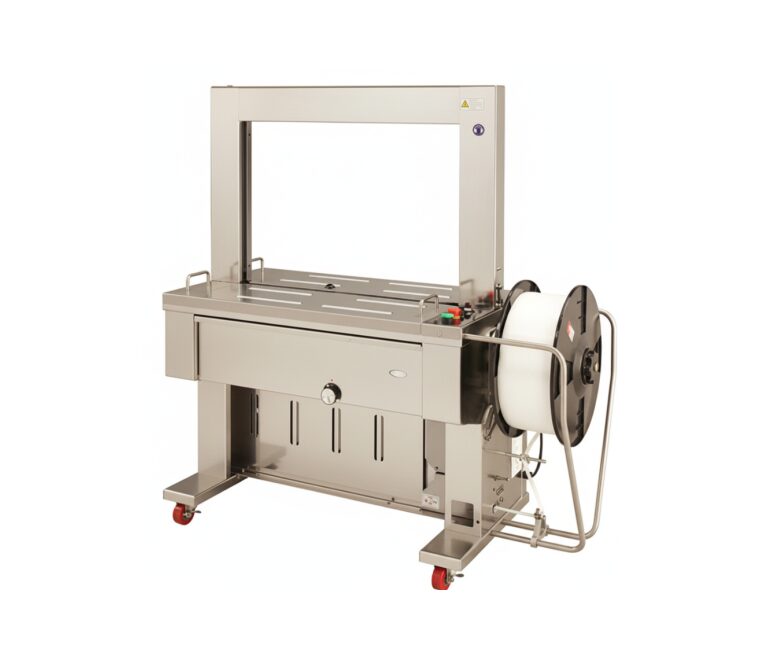

This automatic strapping machine with stainless steel frame is made of industrial grade SUS304 stainless steel. It is specially designed for high humidity and harsh corrosive environment. It has a fast packaging capacity of 65 passes per minute and IP65 waterproof protection. It perfectly meets the HACCP hygiene standard for food packaging and can be ordered in batches.
Body material: SUS304 stainless steel
Packing speed: ≤ 2.2 seconds/track
Protection grade: IP65 waterproof
| Technical indicators | Specifications |
| Frame material | Industrial grade SUS304 stainless steel |
| Packing strap specifications | PP/PET tape (width: 5mm, 9mm, 12mm; thickness: 0.5-0.75mm) |
| Maximum packaging speed | 65 cycles per minute |
| Tension adjustment range | 10 kg – 70 kg (electronically stepless adjustment) |
| Standard frame size | 850mm wide x 600mm high (non-standard customization available) |
| Workbench height | 820mm – 920mm (adjustable casters) |
| Power specifications | 220V/50Hz or 380V/50Hz (0.65kW) |
| Machine weight | Approximately 167 kg – 220 kg (depending on frame size) |
| control system | German brand PLC + DC brushless motor |
Compared with the mainstream carbon steel spray packer on the market, this product adopts a full stainless steel body combined with a side seal structure design, which completely eliminates the risk of pollution caused by the coating falling off into the food packaging chain. This design not only conforms to HACCP and FDA and other international stringent food safety regulations, but also relies on the excellent physical stability of stainless steel to effectively cope with mechanical wear under high-frequency operation, so that the service life of the equipment is extended by more than 50% compared with traditional models. It is the first choice for enterprises pursuing high health standards.
In terms of the core efficiency (OEE) performance of the automated production line, this product achieves technical suppression with the patented sensor-free and fault automatic reset system. Different from the frequent manual intervention of ordinary packers, the system can reduce the frequency of unpredictable maintenance by 40%, ensuring the continuity of production line operation. With advanced infrared sensing technology, its single-machine operating efficiency can directly benchmark the manual output of 5 skilled workers, helping enterprises to recover investment costs in a very short period of 6-10 months.
In view of the strong corrosive environment such as meat processing and agrochemical, the corrosion of the frame body and the decrease of precision caused by acid and alkali penetration of carbon steel equipment are cured, and the equipment still has extremely long service cycle and structural precision under severe working conditions.
Relying on infrared sensing to achieve total no-man operation, effectively alleviate the manufacturing industry recruitment difficulties, difficult to retain people, through efficient output greatly reduce labor costs, production management from the heavy manpower scheduling liberation.
Overcome the cold chain logistics caused by condensed water feeding belt slip or sealing failure, with the heating head self-cleaning technology, in the 5 ℃ low temperature environment still maintain a success rate of 99.9, to ensure the smooth operation of the cold storage line.
With the patented non-band induction and reset system, the long-term shutdown of traditional balers due to abnormal consumables is avoided, the daily maintenance amount is reduced by 40%, and the comprehensive efficiency of large-scale production lines under high load conditions is significantly improved.

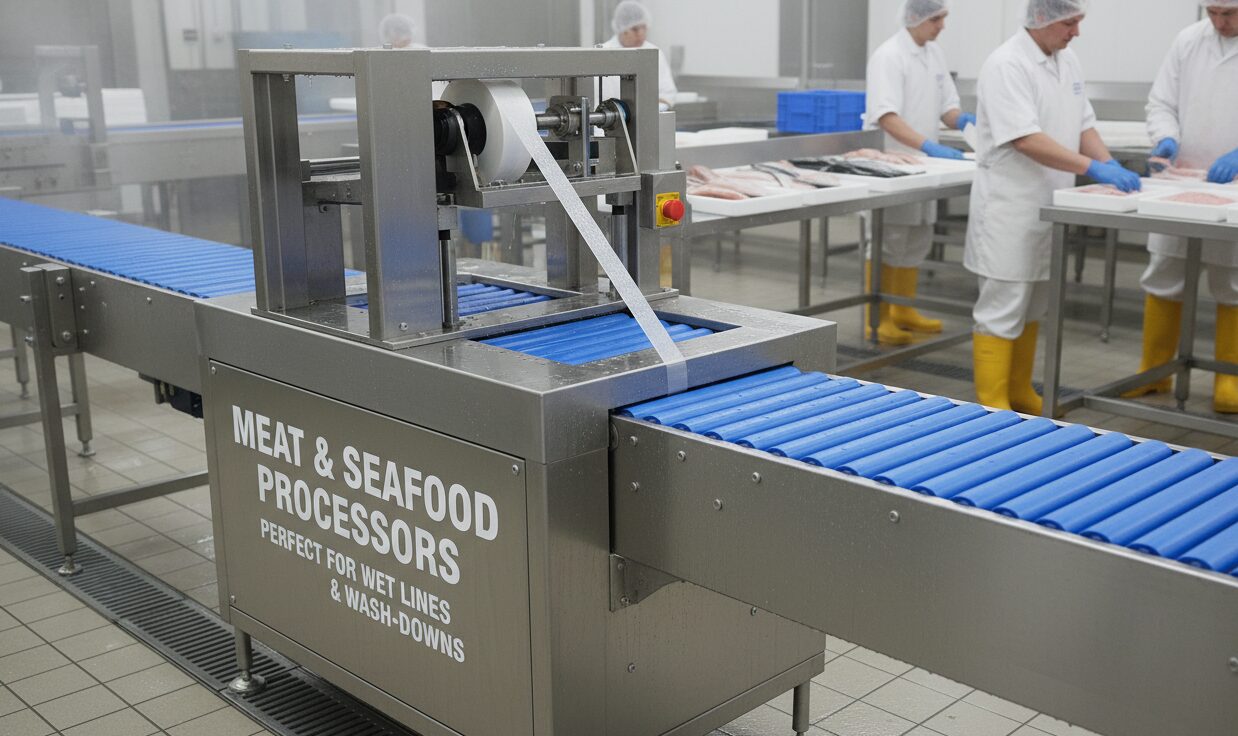

Perfect for wet meat and seafood lines needing frequent wash-downs.

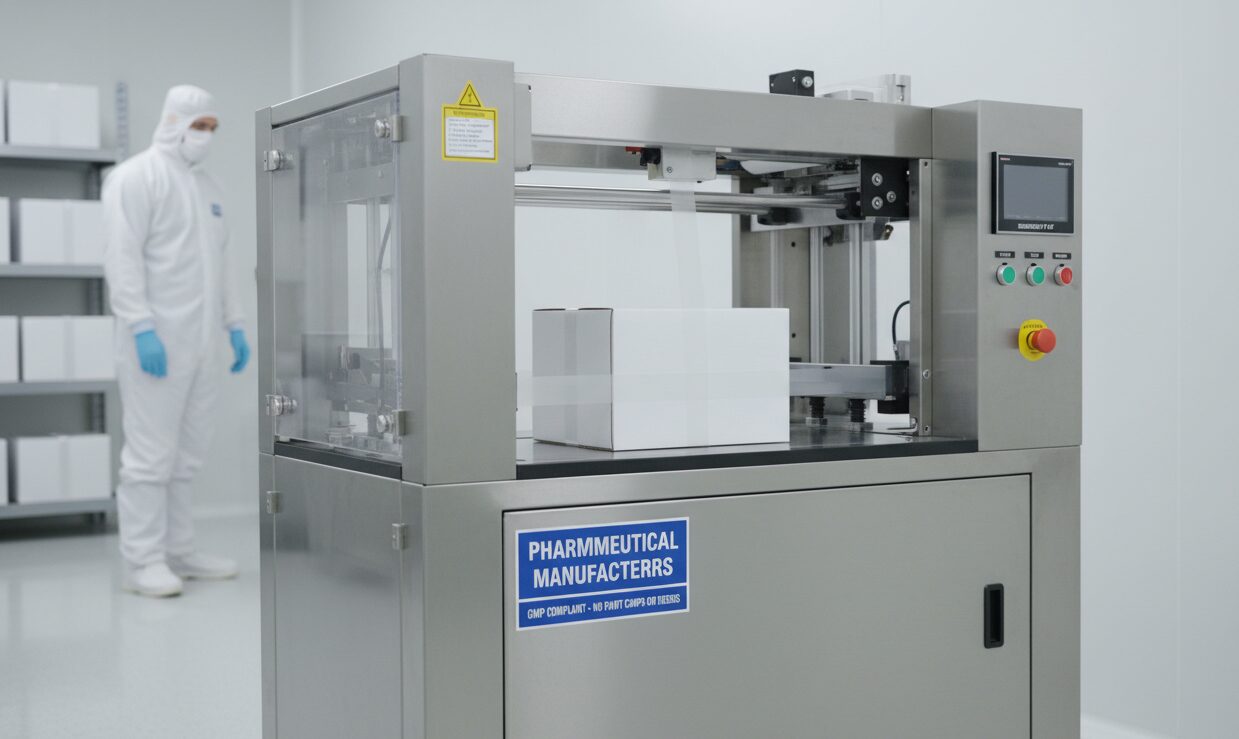

Meets GMP standards for cleanrooms without paint chips or debris.

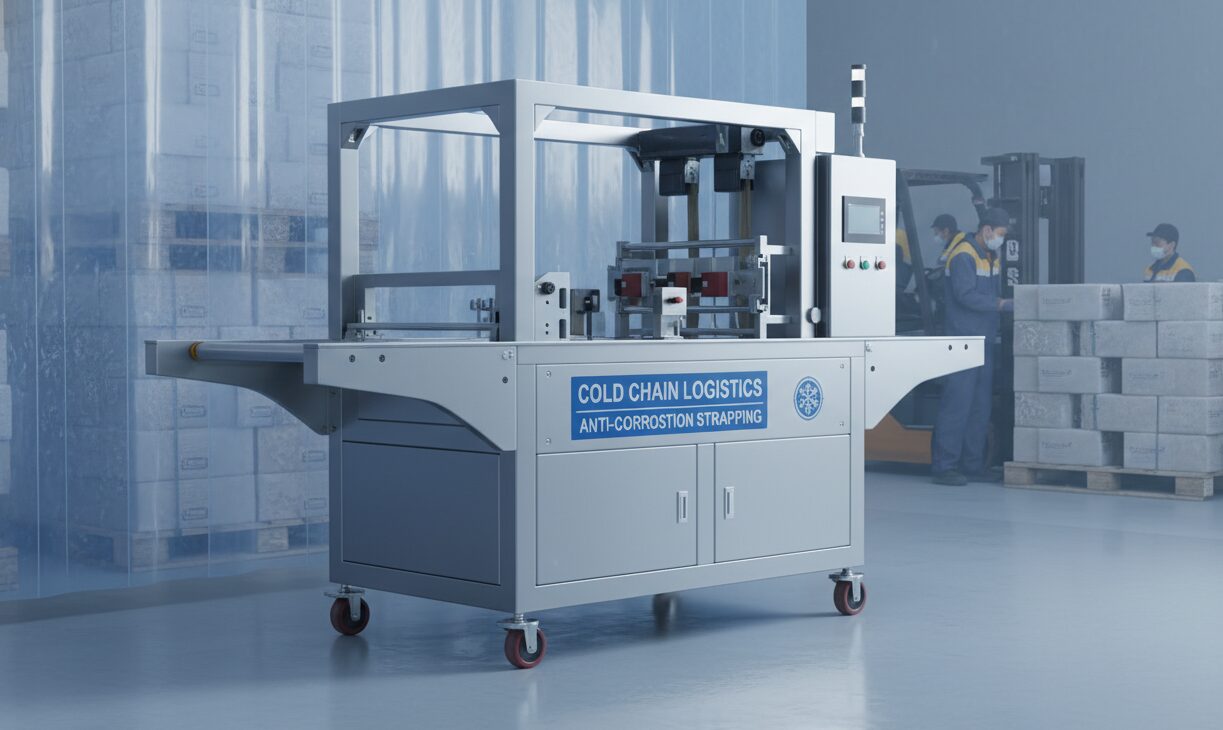

Built for cold storage to resist rust from constant temperature shifts.

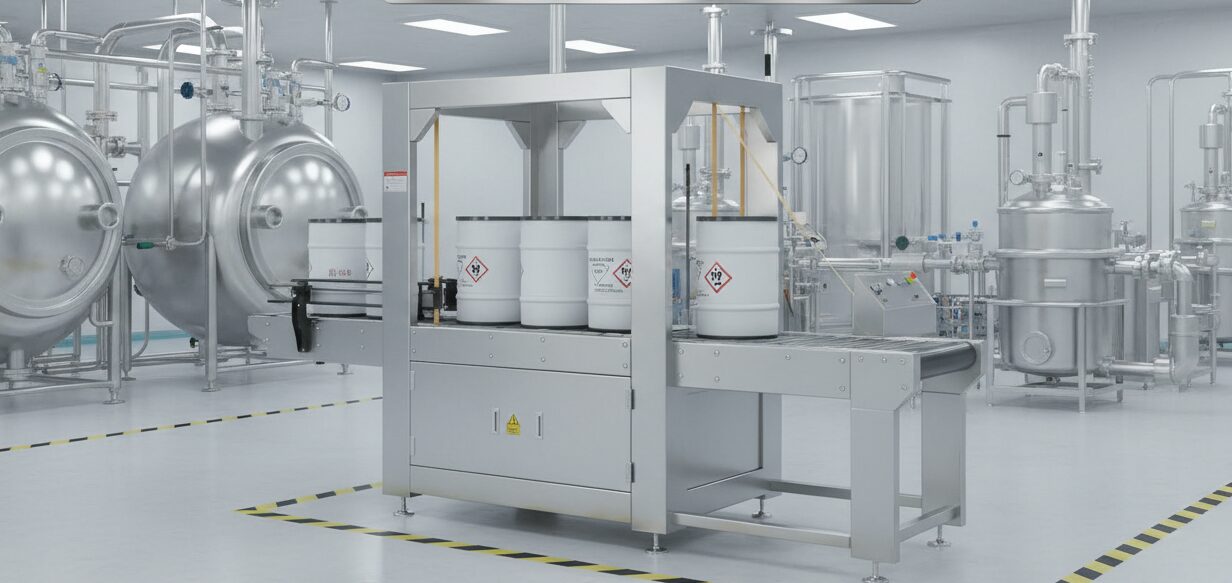

Resists corrosive chemical vapors to ensure long-term equipment life.

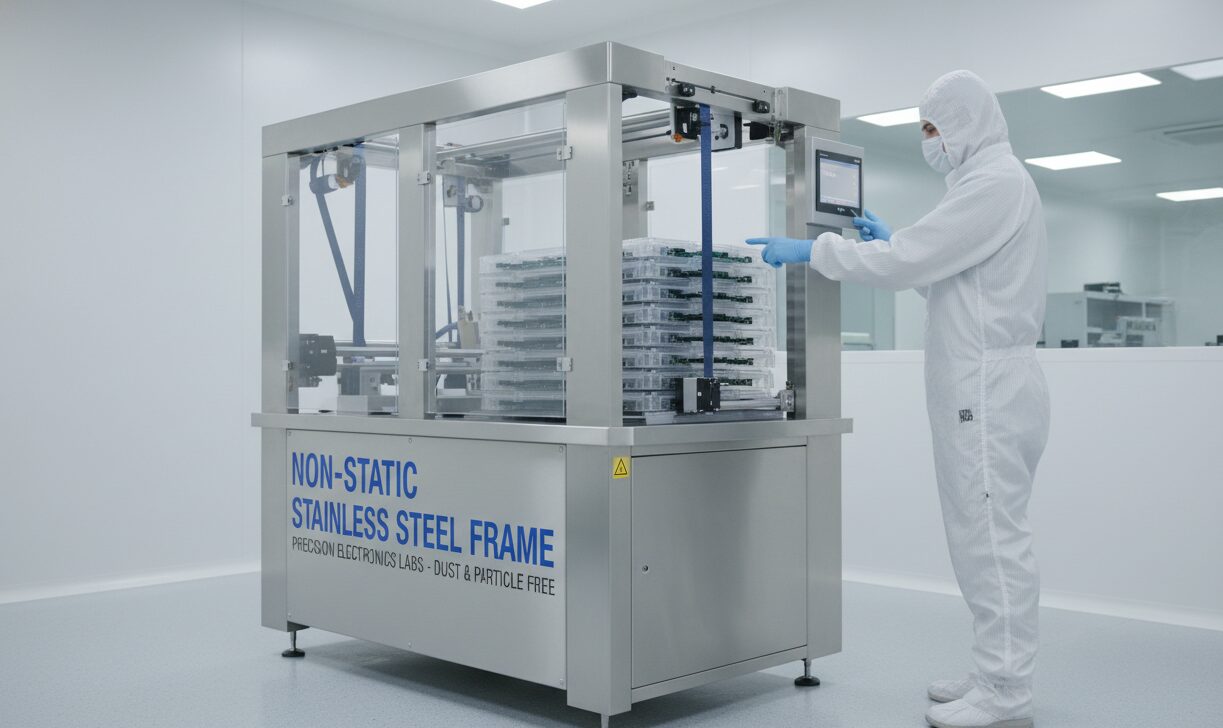

Non-static stainless frame keeps cleanrooms free from dust and particles.

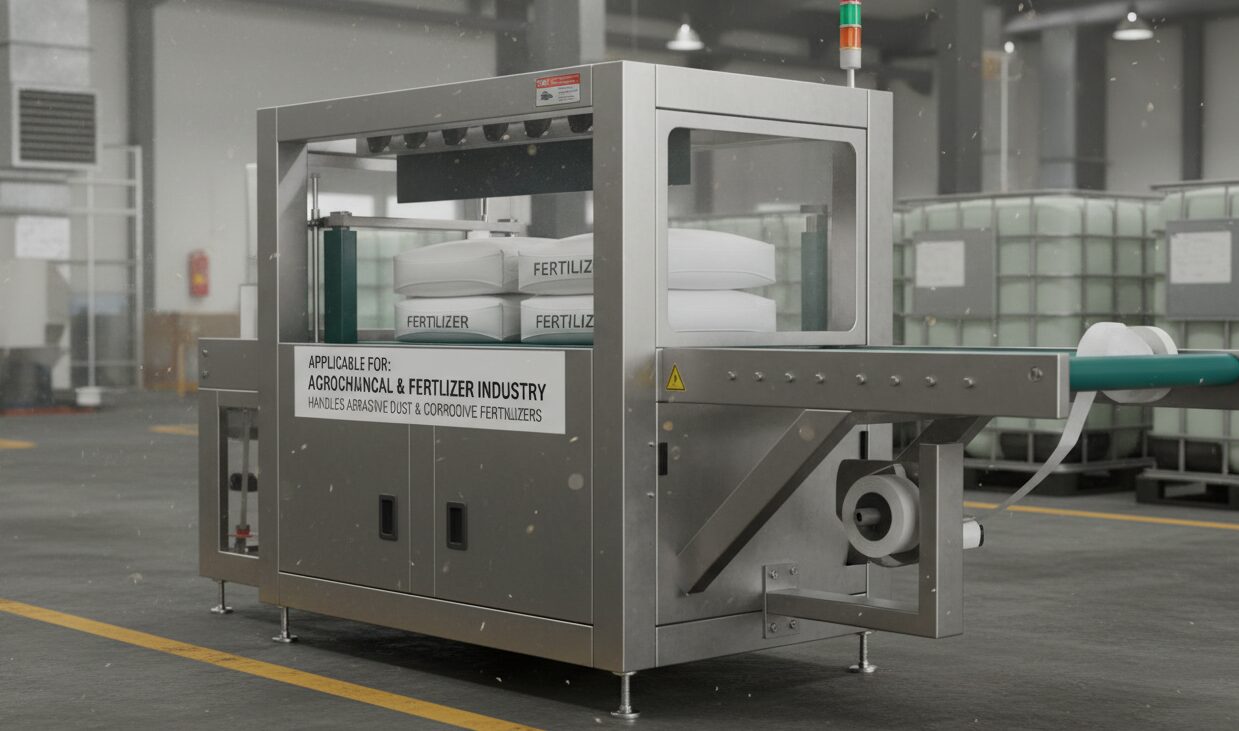

Handles abrasive dust and corrosive fertilizers in harsh environments.
35 years mastering light: Where proven expertise meets future-forward illumination technologies.
A: Yes, this model adopts IP65 protection design. The stainless steel body and key motor parts have waterproof sealing covers to support the standard low-pressure water washing process of food processing plants.

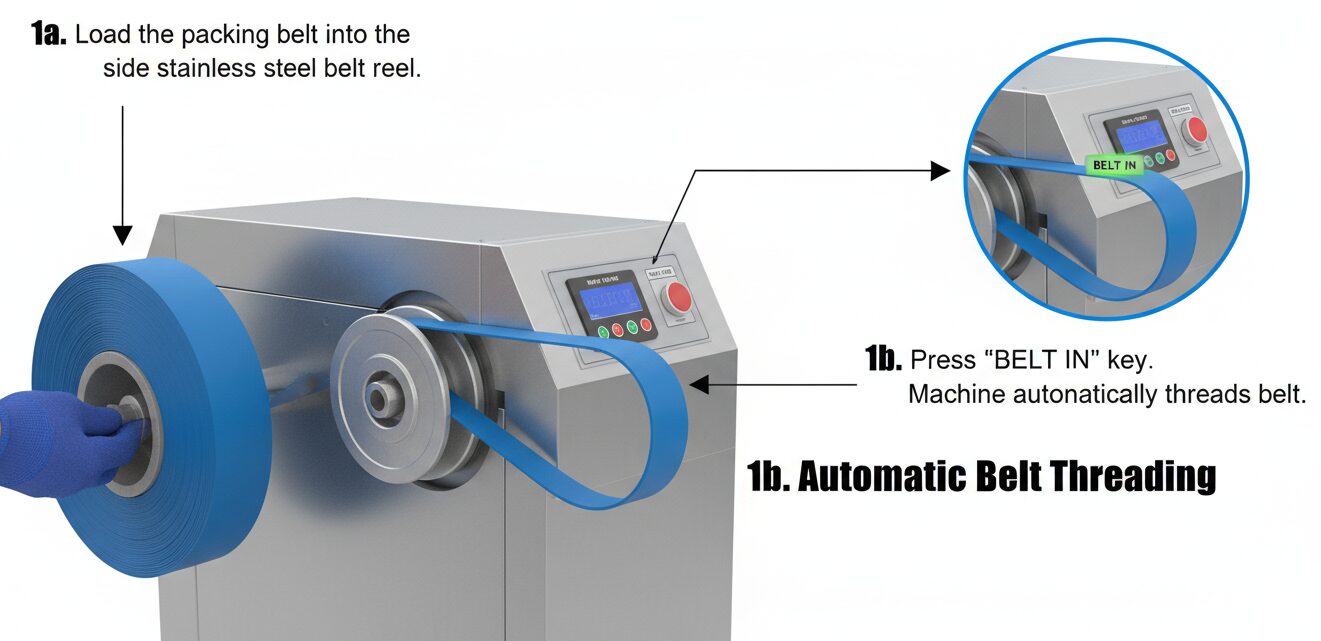

A: Compatible with 5mm, 9mm and 12mm width PP packing tape. The machine is equipped with an adjustable belt guide slot, which can be switched to different specifications with simple adjustment.
A: No need. The machine has the function of automatic spitting belt. If the fault of feeding belt is detected, the broken belt will be automatically discharged and reset. Usually the recovery time is less than 10 seconds.
A: No. The tension range is electronically controllable between 10-70kg, and the minimum tension is only 10kg. It can be specially packed with lightweight cartons in combination with flexible belt (Soft Tension) mode.
A: Yes. The standard frame is 850x 600mm, we support to provide customized frames according to your product size, up to 2000mm wide.
A: The heating head is made of high-performance alloy materials. Under regular use (5000 times a day), its service life is usually more than 12-18 months.
