Soonqian automatic horizontal strapping machine carries out multi-layer accurate horizontal packing of palletized goods through intelligent induction technology, effectively preventing goods from slipping or collapsing between layers during transportation, and is especially suitable for pallet fixing in building materials, beverage and chemical industries. Soonqian is a source manufacturer with independent research and development capabilities, eliminating middlemen, providing you with highly competitive ex-factory prices and faster delivery speeds, and supporting non-standard customization and bulk procurement.
Automatic Horizontal Strapping Machine is mainly used in building gas brick stacking fixed, food and beverage industry glass bottles layered packaging, chemical raw materials barreled goods anti-dumping reinforcement and logistics center export tray overall stable packaging.
Siemens PLC control system is used with high sensitivity photoelectric sensor, and the vertical positioning accuracy is controlled within 2mm, so as to ensure that each strapping band accurately falls on the key reinforcement point of pallet goods and avoid loose packaging caused by position deviation.
The built-in high-power servo motor provides adjustable tightening force of up to 7000N. The system can automatically match the optimal pressure value according to the material of the goods (such as brittle red brick or elastic carton), thus preventing the outer package from being damaged while ensuring that the goods are not scattered.
Abandoning the traditional hot head heating mode and adopting high-frequency friction hot melt technology, the bonding strength of the packing tape interface reaches more than 85% of the strength of the master tape, and there is no smoke and no peculiar smell, which is not only more environmentally friendly, but also eliminates the maintenance cost caused by the aging of the heating element.
Soonqian unique movement module design can be perfectly compatible with 12mm to 19mm PP and PET packing tapes. The factory can flexibly switch consumables according to the weight of goods without replacing core components, helping enterprises to save about 20% of the annual consumables purchase cost.
The main body of the fuselage is welded with thick carbon steel and treated by electrostatic spray, which has strong corrosion resistance. The design life of the core moving parts exceeds 2 million cycles, and it can be operated stably for a long time even in a building material factory with large dust or a wet beverage factory.
Equipped with HMI human-computer interaction touch screen, real-time monitoring equipment running status. Once there is a missing band or an abnormal band, the screen will automatically display the error code and the corresponding troubleshooting guide icon, shortening the equipment downtime and maintenance time to less than 30 minutes.
| Parameter name | Specifications |
| Core keywords | Automatic Horizontal Strapping Machine |
| Applicable packing straps | PP/PET tape |
| Band width | 12mm, 16mm, 19mm |
| strip thickness | 0.6mm – 1.2mm |
| With paper core diameter | 406mm (standard) |
| Bow frame dimensions (W x D) | 1600mm x 1600mm (Customization available) |
| Maximum packaging height | 2400mm |
| Climbing speed | 0.5 m/s (frequency converter control) |
| Adhesion method | Friction Weld |
| Power consumption | 3.5 kW |
| Gas source pressure | 0.5 – 0.7 MPa |
| Machine weight | Approximately 1200 kg |
| Workbench height | 500mm – 700mm (adjustable) |
Compared with the common horizontal packing equipment on the market, the Soonqian automatic horizontal strapping machine adopts the modular aluminum alloy movement design, which not only reduces the weight by 40% compared with the cast iron movement, but also greatly improves the heat dissipation performance and motion accuracy. Our equipment introduces “floating head” technology. During the packaging process, the head can be adjusted adaptively with the slight unevenness of the cargo surface to ensure that the belt always fits the cargo surface and the tightness is increased by 30%.

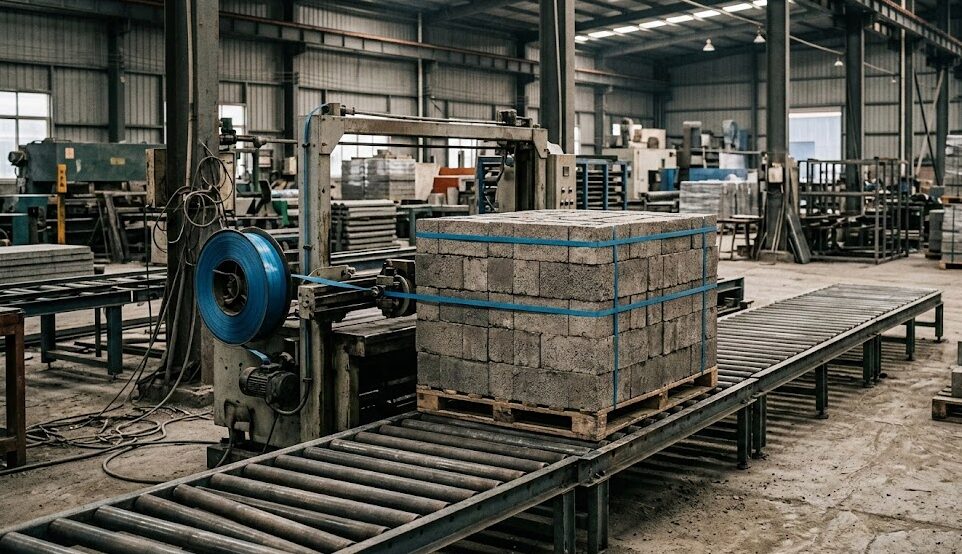

For enterprises that produce aerated bricks, concrete blocks or ceramic tiles, the equipment can solve the problem of interlayer dislocation that is easy to occur during the transfer of heavy brick stacking, replace artificial wrapping film, greatly reduce packaging costs and improve shipping efficiency.

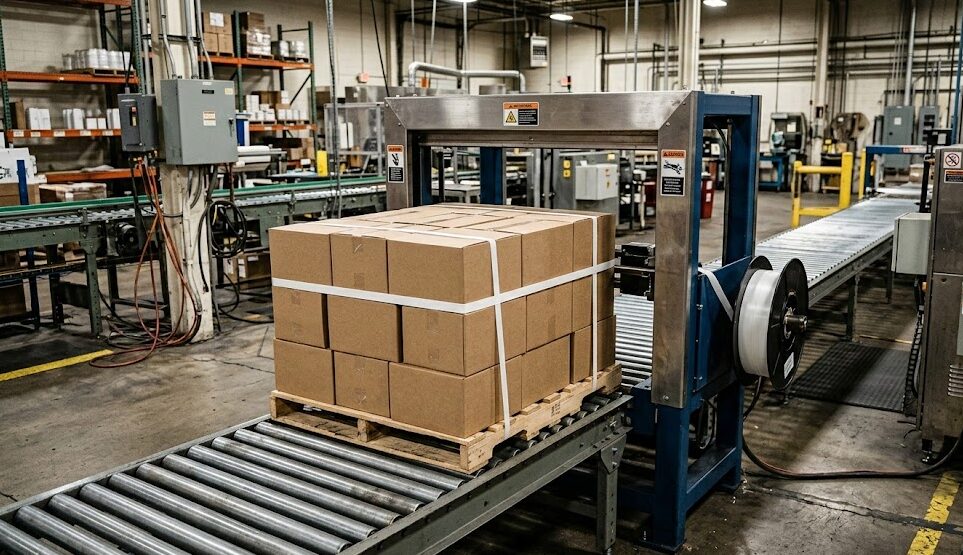

For canned food or empty can manufacturing plants. This machine can ensure that hundreds of containers remain absolutely still on the pallet. When used with corner guards, it can replace the expensive shrink film packaging process.

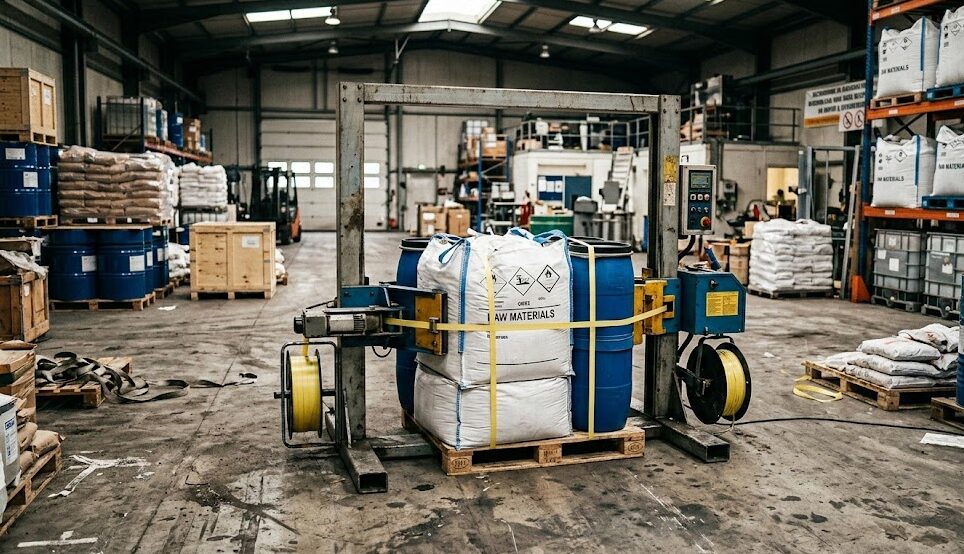

For companies exporting bagged pellets or barreled liquids, horizontal strapping provides additional lateral support to meet the stringent requirements of shipping containers for cargo stability and to prevent large claims from being dumped during sea bumps.

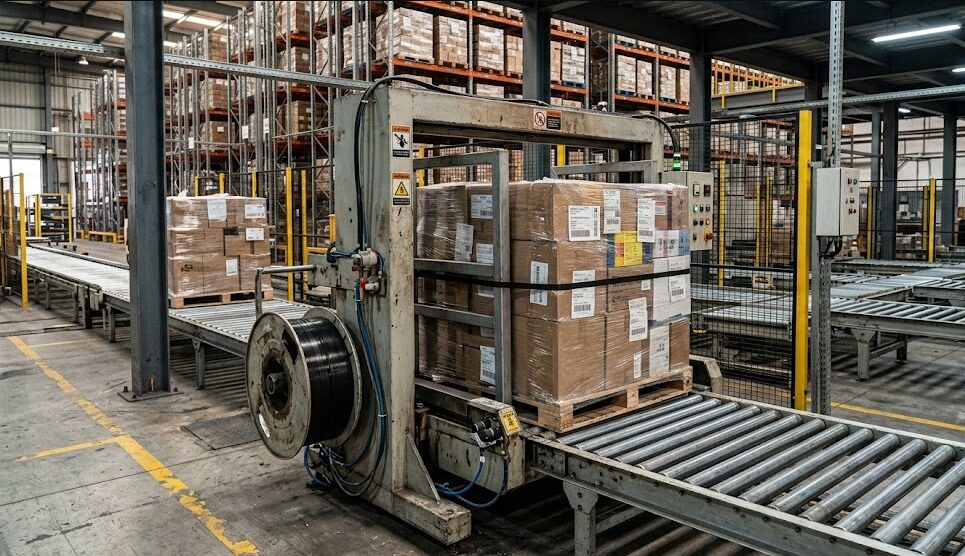

For the project leader who is planning an unmanned three-dimensional warehouse, the Soonqian full-automatic horizontal strapping machine provides a standard communication interface and can seamlessly connect to the existing conveyor line and WMS system, which is the key link to realize full-automatic warehousing packaging.
Open the door of the belt reel cabinet, load the PP or PET belt roll into the belt reel, send the belt head into the belt storage box according to the belt wearing schematic diagram marked on the body, and click the “automatic belt feeding” button on the screen to complete the preparation.
Select the preset mode (such as “heavy brick” or “light carton”) on the HMI touch screen according to the type of goods, set the number of lanes to be tied (such as one on the top, one on the bottom and one in the middle) and the specific binding height.
After confirming that the goods have entered the packing area and triggering the photoelectric induction, press the “Auto Start” button, the gantry will automatically drop to the specified height, and the head will complete the tape feeding, tightening, tape cutting and bonding actions.
Before leaving work every day, use the air spray gun to clean the packing belt debris and dust inside the movement, check the wear of the ironing head or friction plate once a week, and keep the guide belt groove clean to ensure smooth long-term operation.
